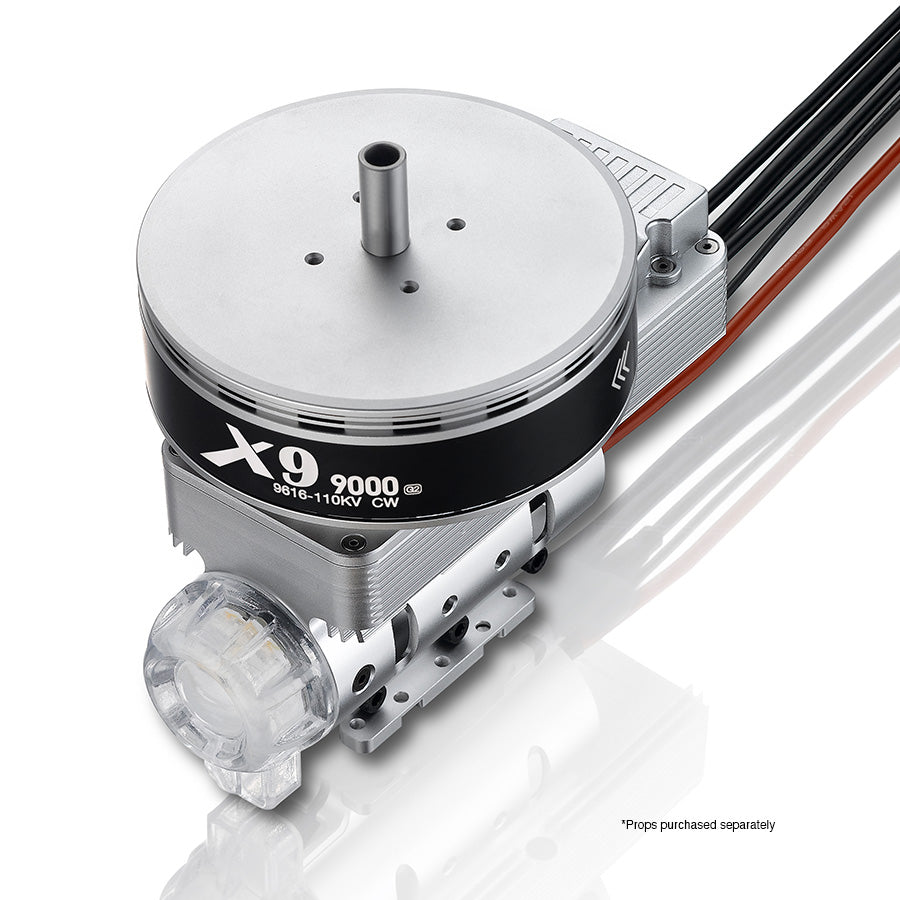

X9 Power System | X8 Power System |
 |
 |
|
|
p/n
|
30410030023 / 30410030024 | 30414000 / 30414001 |
| Max Thrust | 19.2kg/Axis (46V, Sea Level ) | 15.3kg/Axis (48V, Sea Level ) |
| Recommended LiPo Battery | 12S LiPo | 12S LiPo |
| Recommended Takeoff Weight | 7-9.5kg/Axis (46V, Sea Level ) | 5-7kg/Axis(48V，Sea Level) |
| Product Weight (ESC/Motor/Prop) | 1400g | 1040g |
|
Waterproof Rating
|
IPX7 | IPX7 |
| Operating Temperature | -20-55℃ | -20℃~65℃ |
| Motor | ||
| Stator size | 96*16mm | 81*20mm |
| KV Rating | 110KV | 100KV |
| O.D of Carbon Fiber Tube | φ40 | Φ40 (*Tube Adapter will be Needed) |
| Bearing | Imported Waterproof Bearing | NSK Ball Bearing (Waterproof) |
| ESC | ||
| Recommended LiPo Battery | 6-12S LiPo | 6-12S LiPo |
| PWM Input Signal Level | 3.3V/5V (Compatible ) | 3.3V/5V (Compatible ) |
| Throttle Signal Frequency | 50-500Hz | 50-500Hz |
| Operating Pulse Width | 1100-1940 μs (Fixed or cannot be Programmed ) | 1100-1940 μs (Fixed or cannot be Programmed ) |
| Max. Input Voltage | 52.2V | 52.2V |
| Max. Input Current (Cont.) | 120 A (w/ Good Heat Dissipation ) | 80 A(w/ Good Heat Dissipation ) |
| Max. Peak Current (10s) | 150 A (w/ Good Heat Dissipation ) | 100 A (w/ Good Heat Dissipation ) |
| BEC | No | No |
| Nozzle Mounting Holes | φ28.4mm-2*M3 | Φ28.4mm-2*M3 |
| Propeller | 3411 | 3011 |
| Diameter×Pitch | - |
- |
| - | 180g |
* CAN protocol version is available upon request. After testing Sample units, MOQ is required
