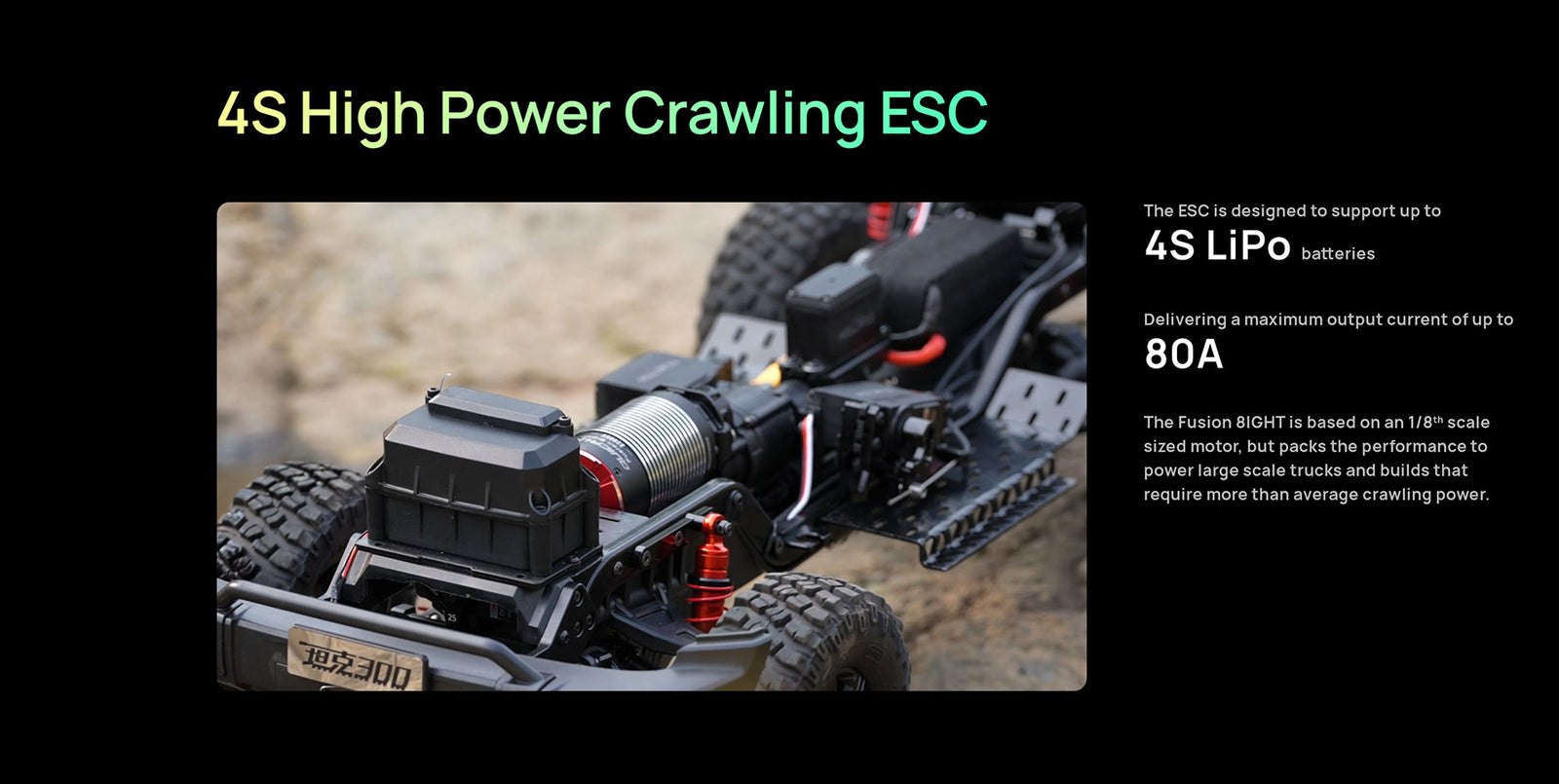

QuicRun Fusion 8IGHT

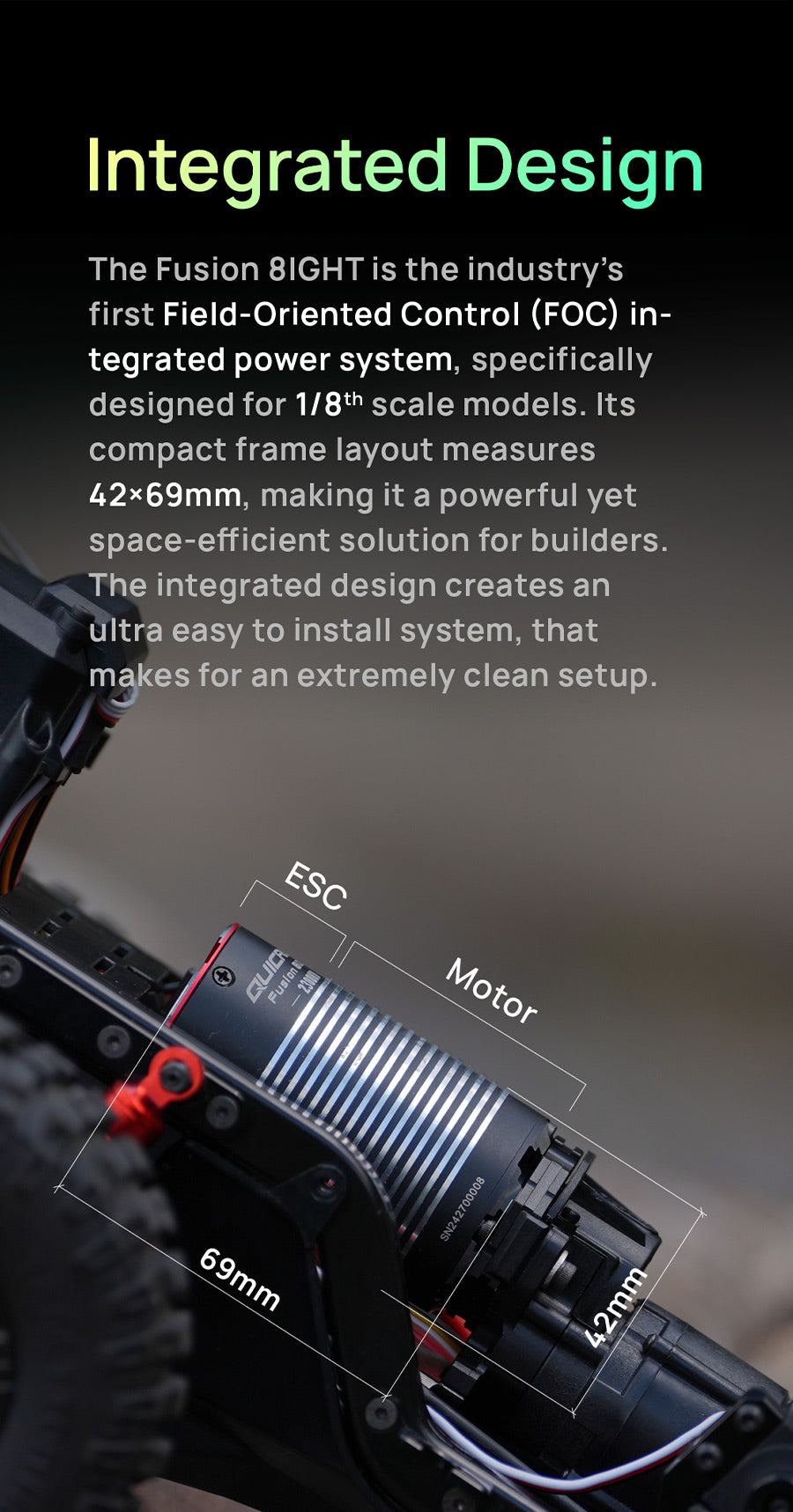

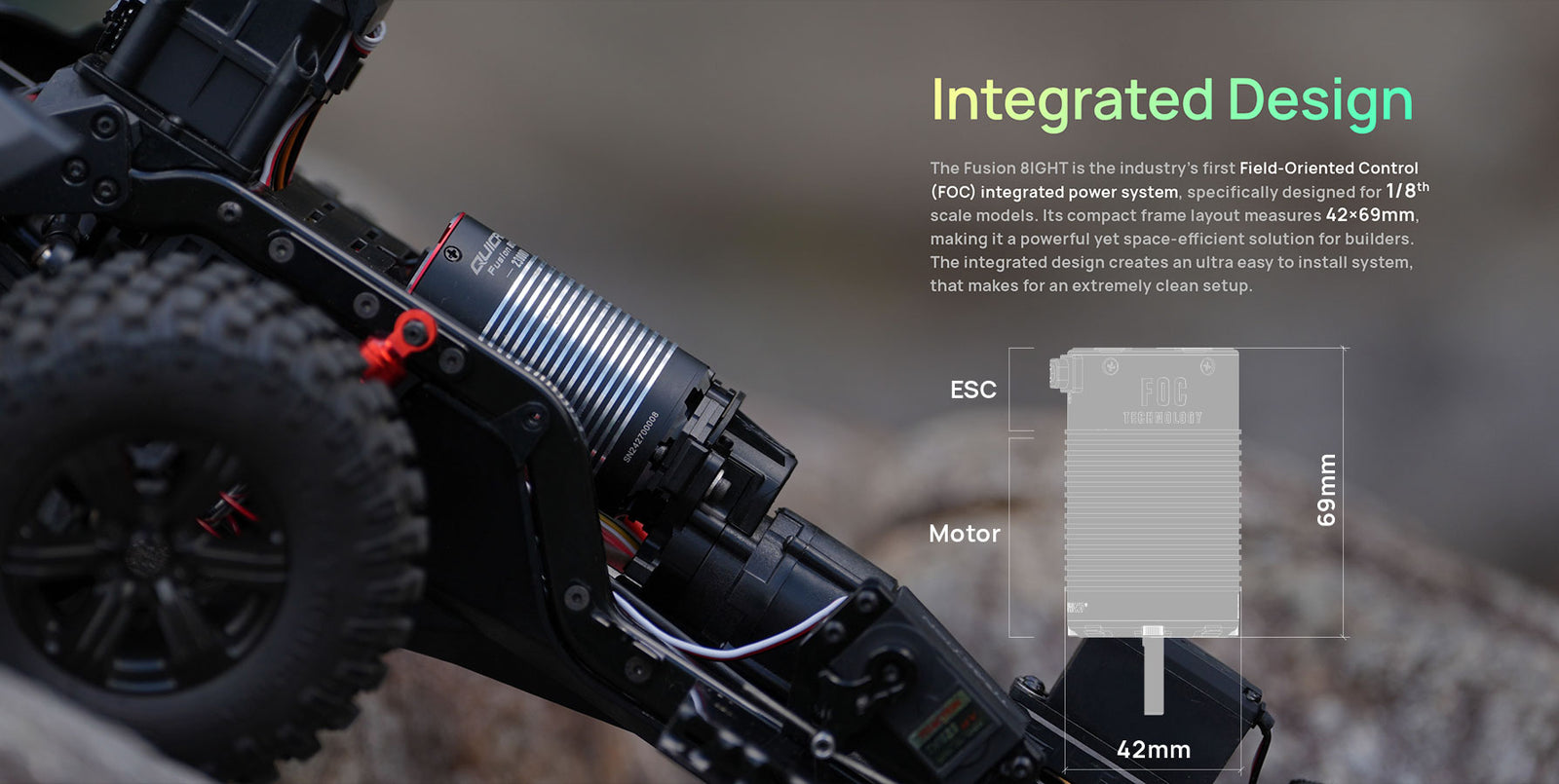

- The integrated design of the ESC and motor simplifies car layout and wiring, making it more convenient.

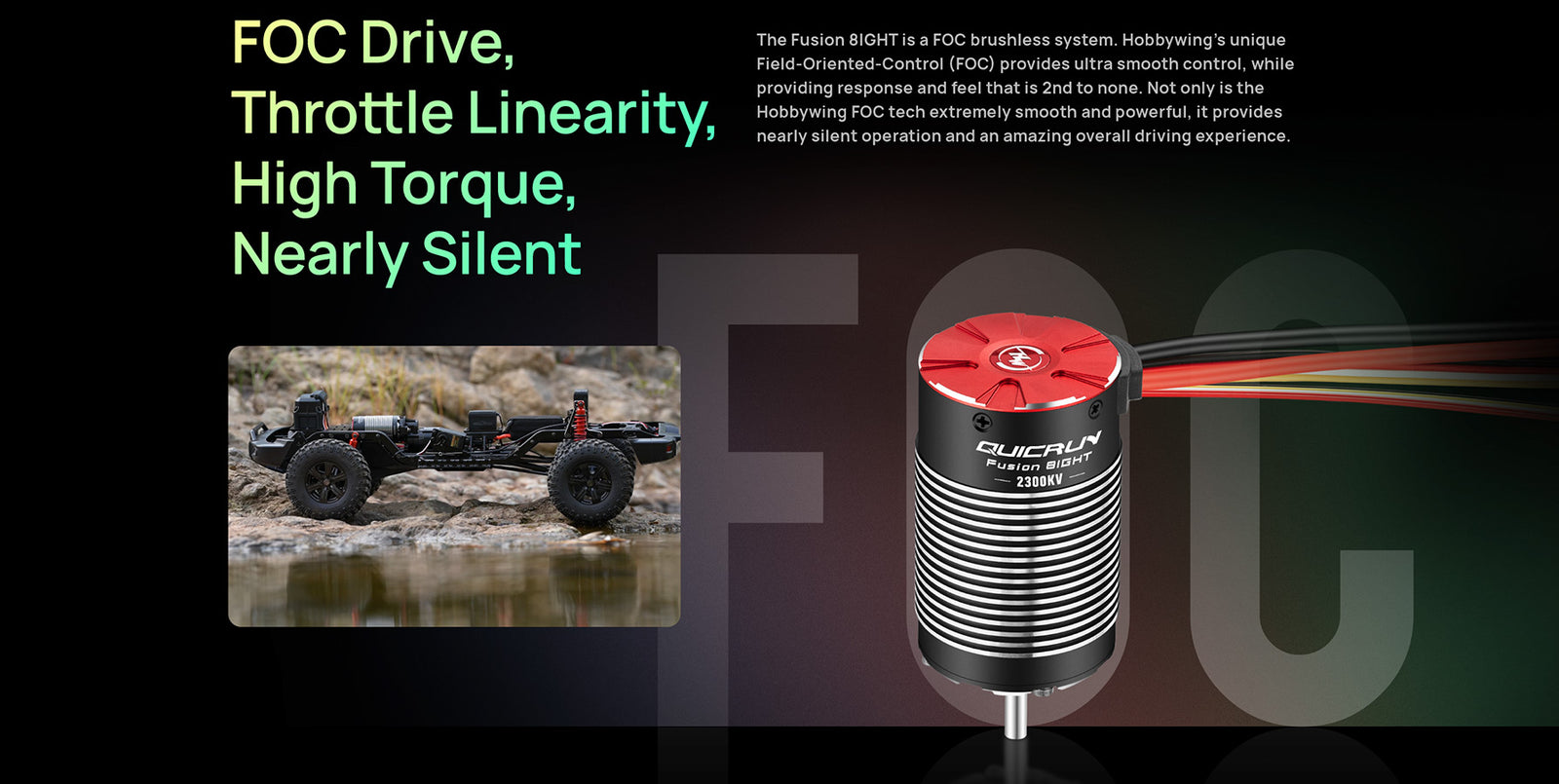

- FOC (Field Oriented Control) driving mode enhances the power system for rock crawlers, providing strong low-speed torque. This setup offers improved control and feel over standard brushless and even brushed setups.
- High efficiency results in less heat, extending runtime, while the motor operates more quietly and smoothly.

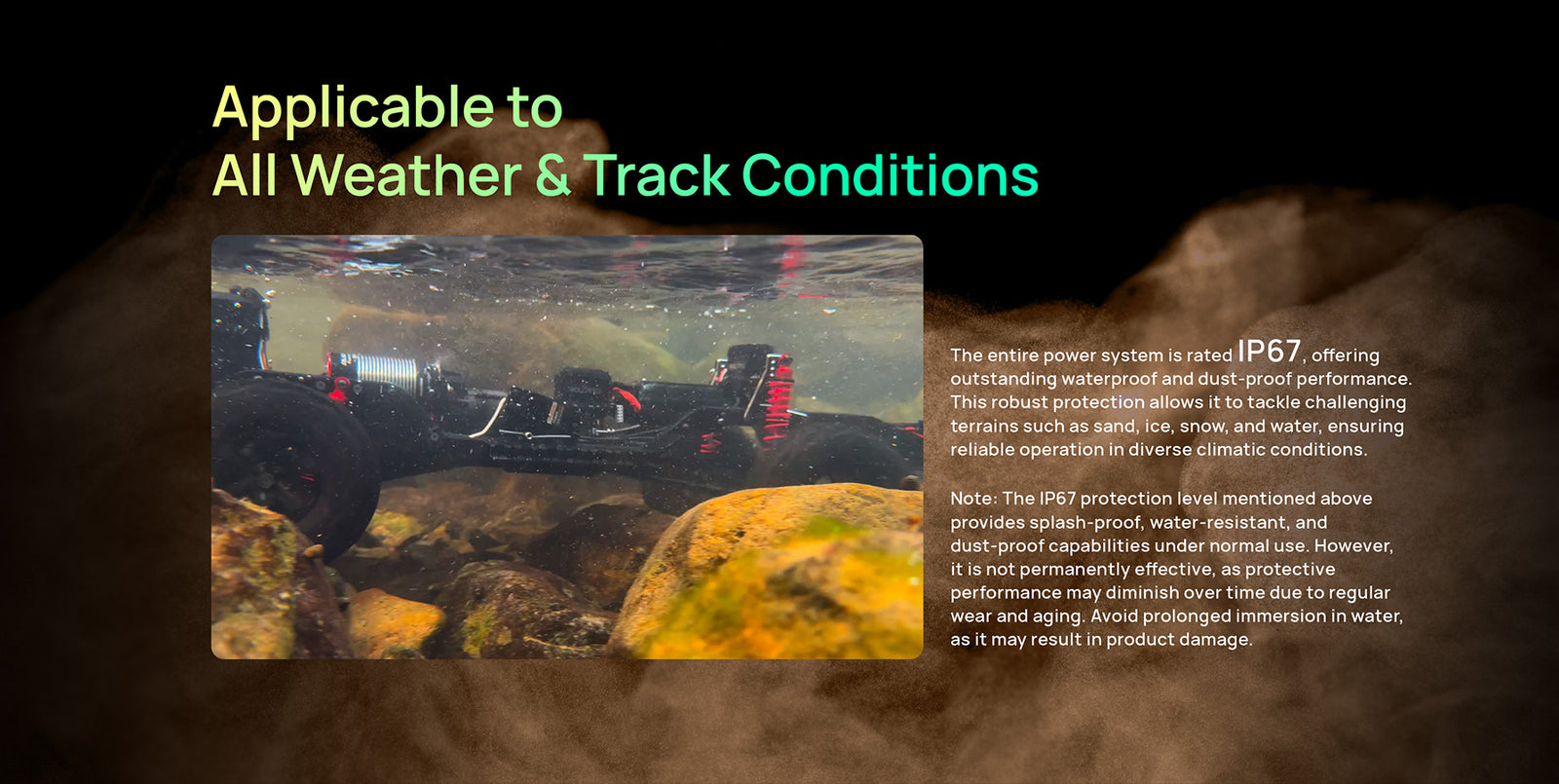

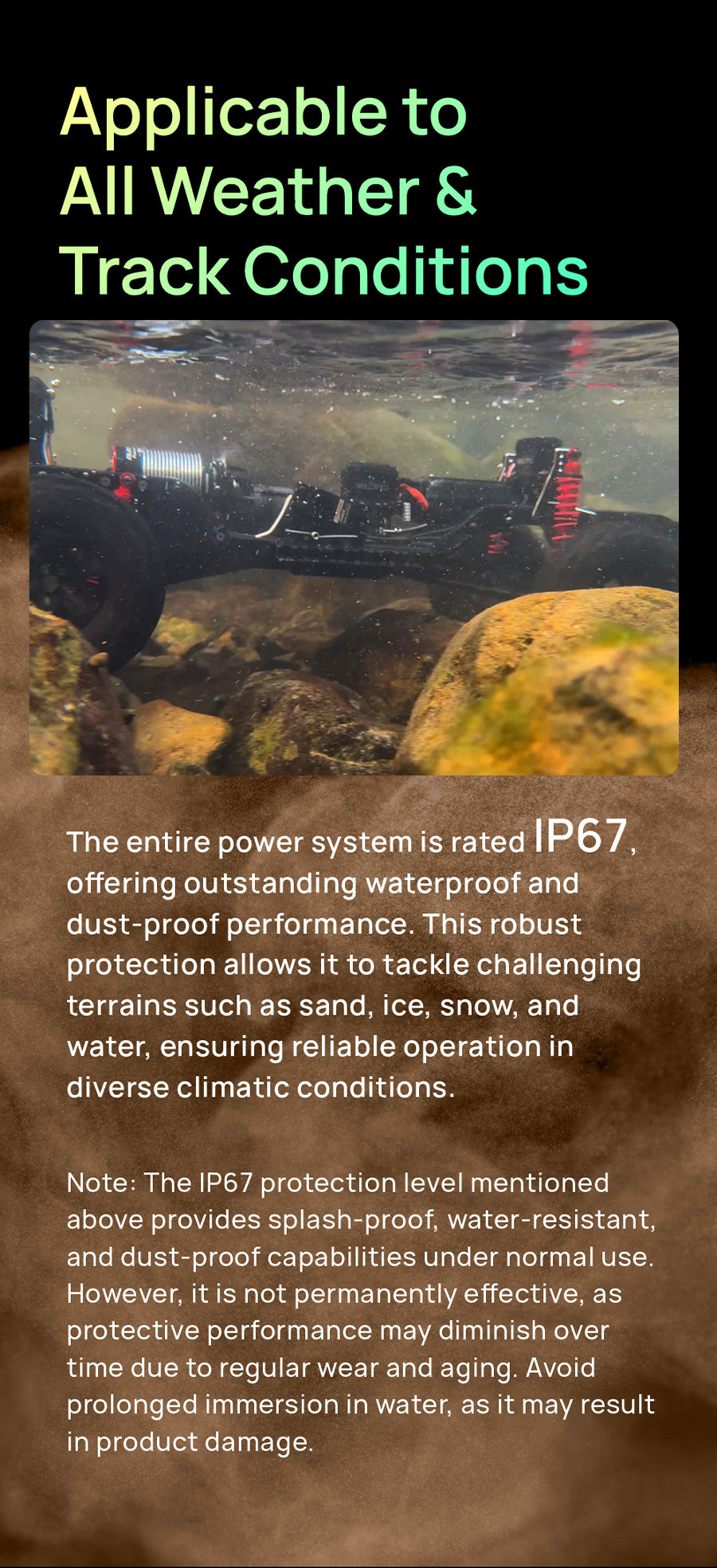

- IP67 protection grade ensures reliable performance in all conditions.

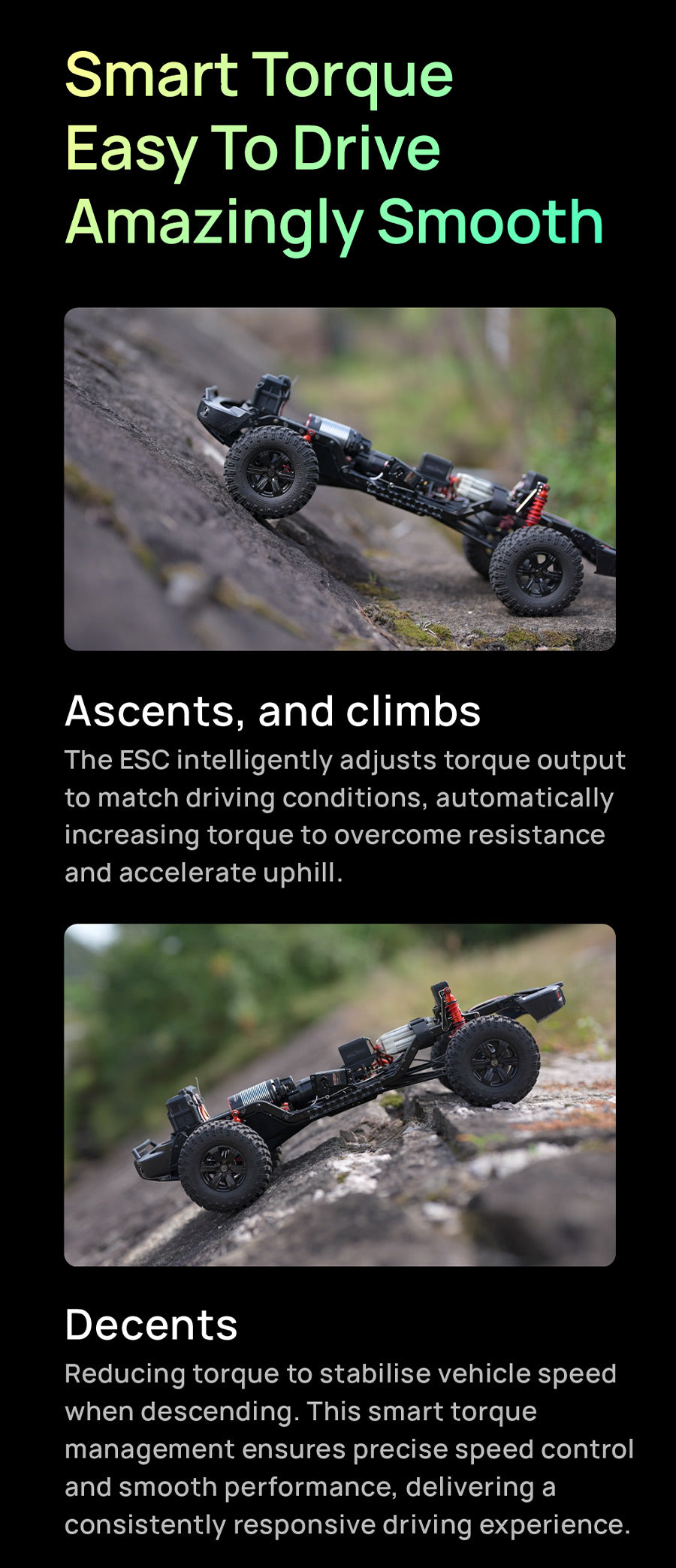

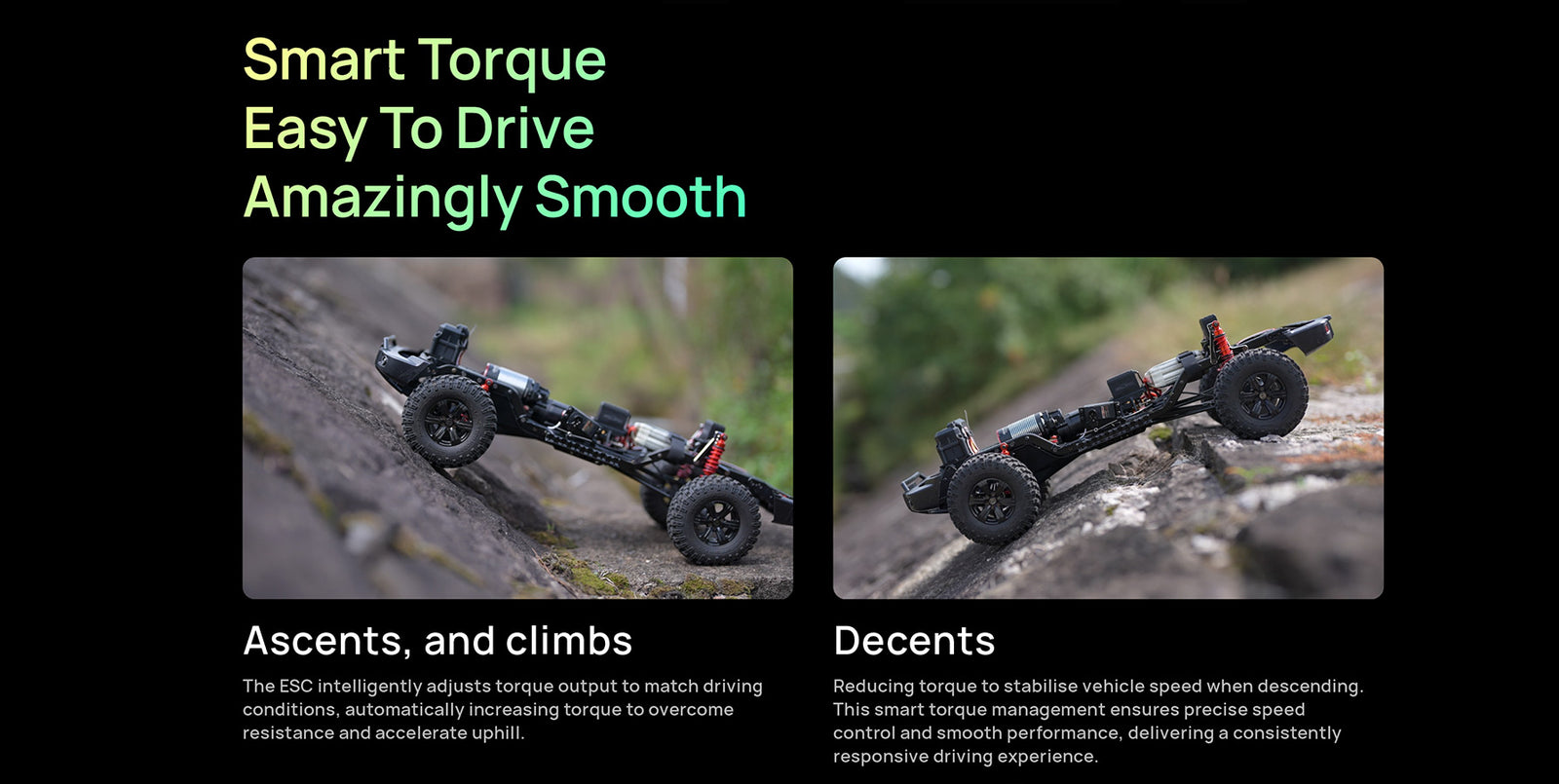

- Intelligent torque output and speed closed-loop control allow for precise handling.
- Active drag brake force adjustment offers superior holding power on inclines.
- Equipped with a strong built-in switch mode BEC, delivering a continuous/peak current of up to 6A/13A with adjustable voltages (6V/7.4V/8.4V) to power high-torque and high-voltage servos.

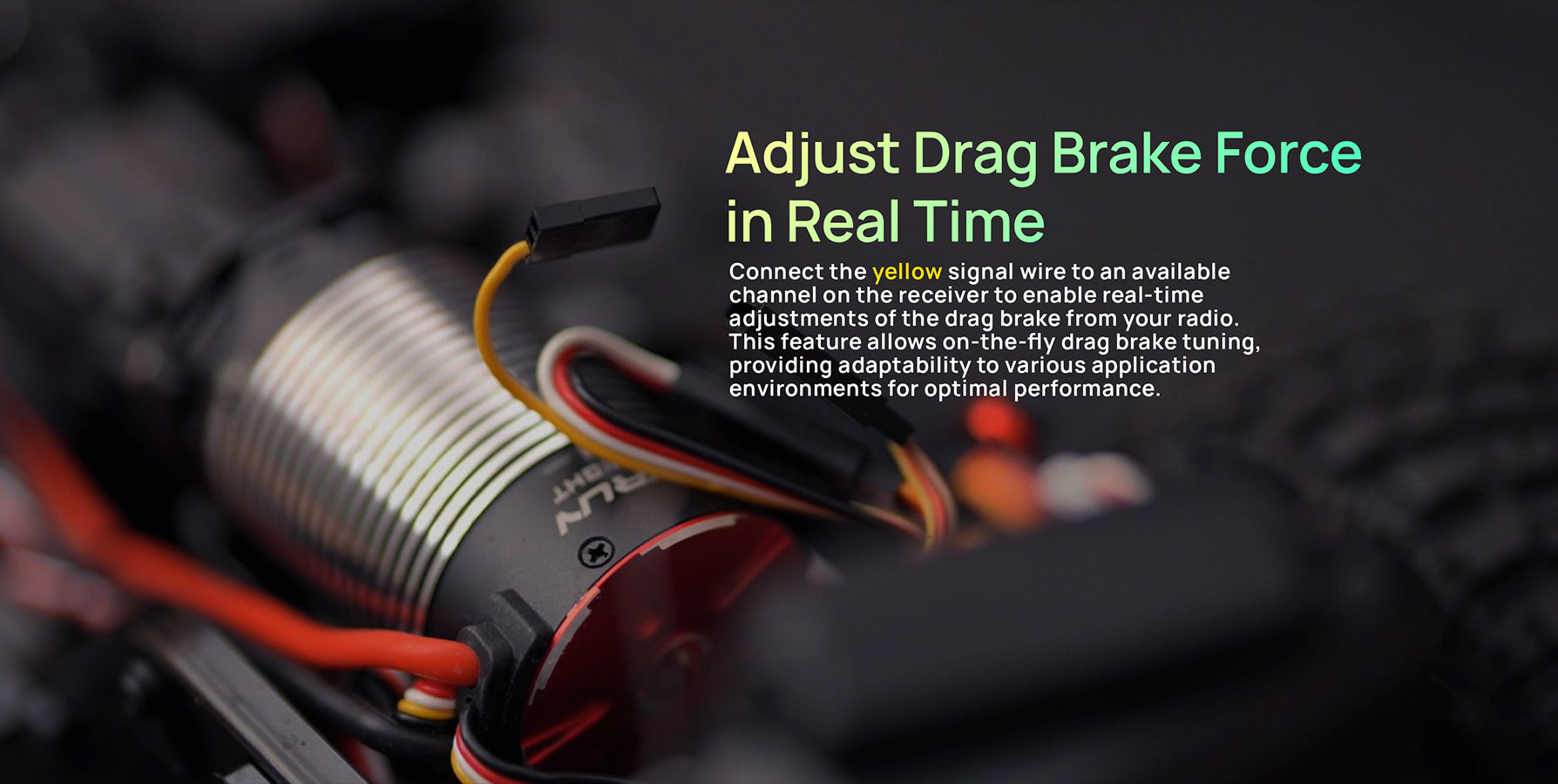

- Real-time drag brake force adjustment is possible via the transmitter’s AUX channel.
- Multiple protection functions: low battery voltage, overheat, throttle loss, and lock-up protections.

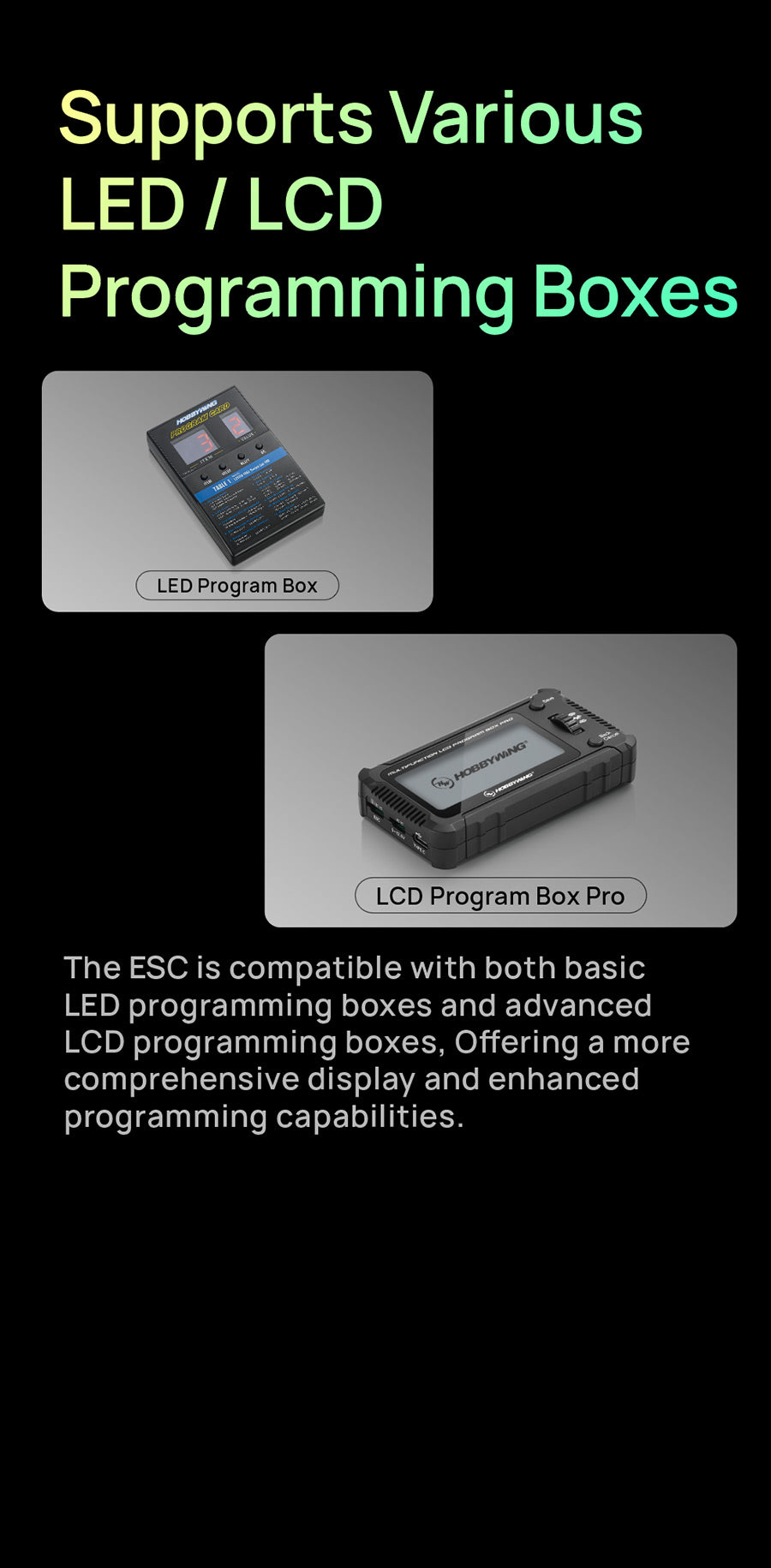

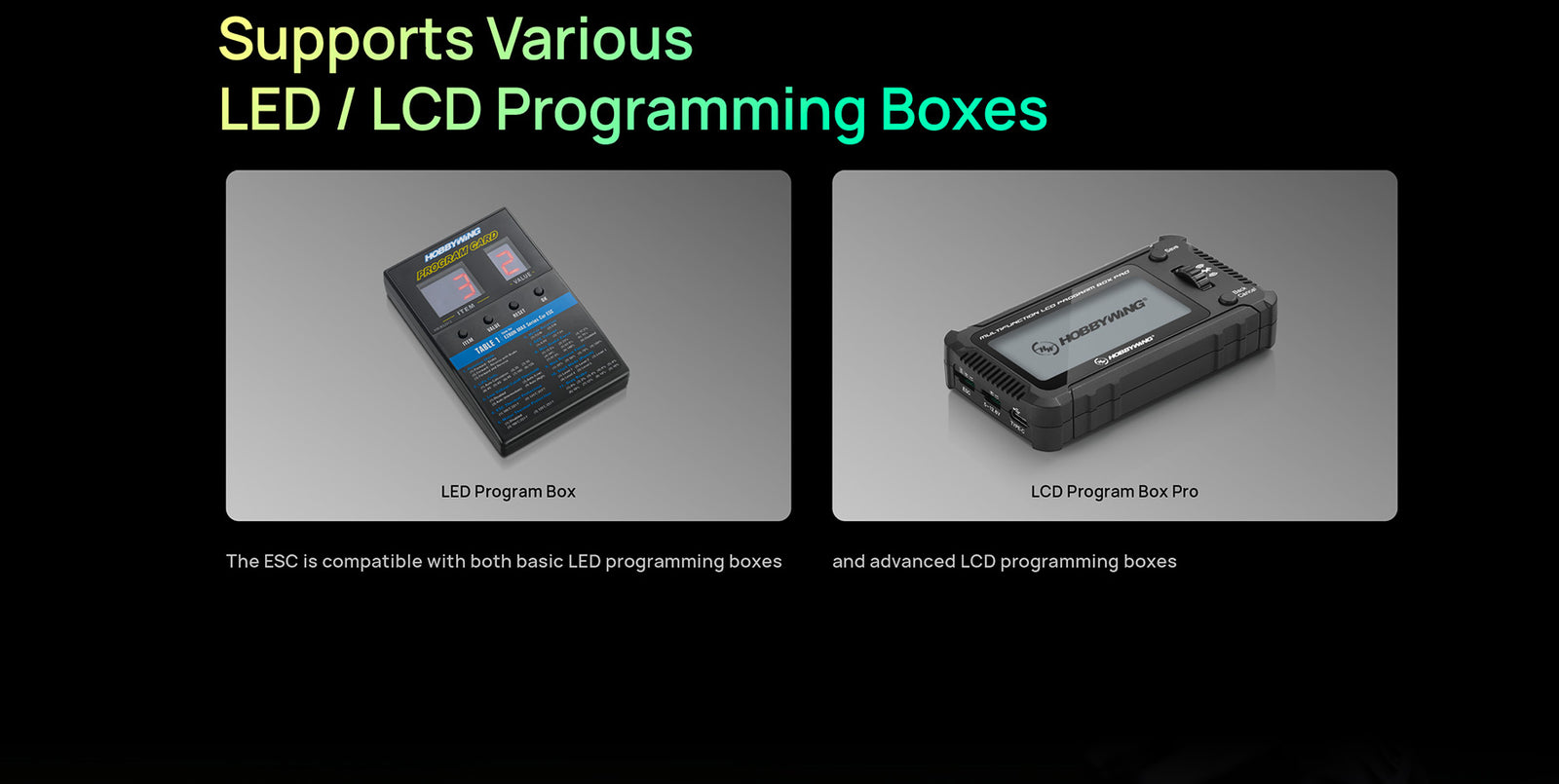

- Compatible with LED and LCD Program Box Pro/G2 for easy ESC parameter adjustments.
Diagram:

Parameter schedule:
- User's Manual: QuicRun Fusion 8ight.pdf >
- Product brochure: QuicRun Fusion 8ight_leaf-en.pdf
