Integrated Propulsion system
This product is designed and used for Agricultural application or logistics transportation.
Order procedure:
-
To ensure your safety, Product Release Form must be submitted prior to shipment. https://www.hobbywingdirect.com/pages/product-release-form
- Proceed with your order.

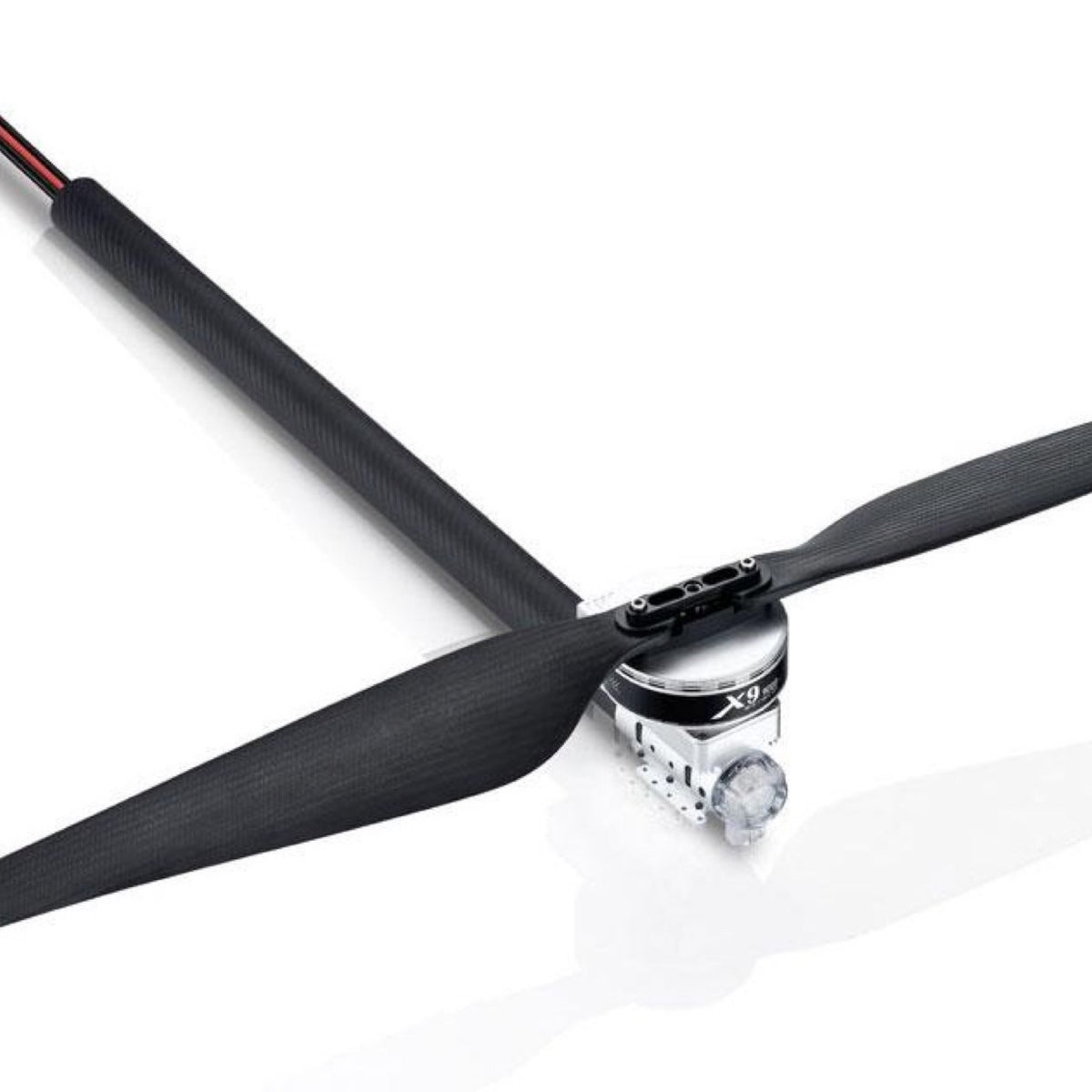

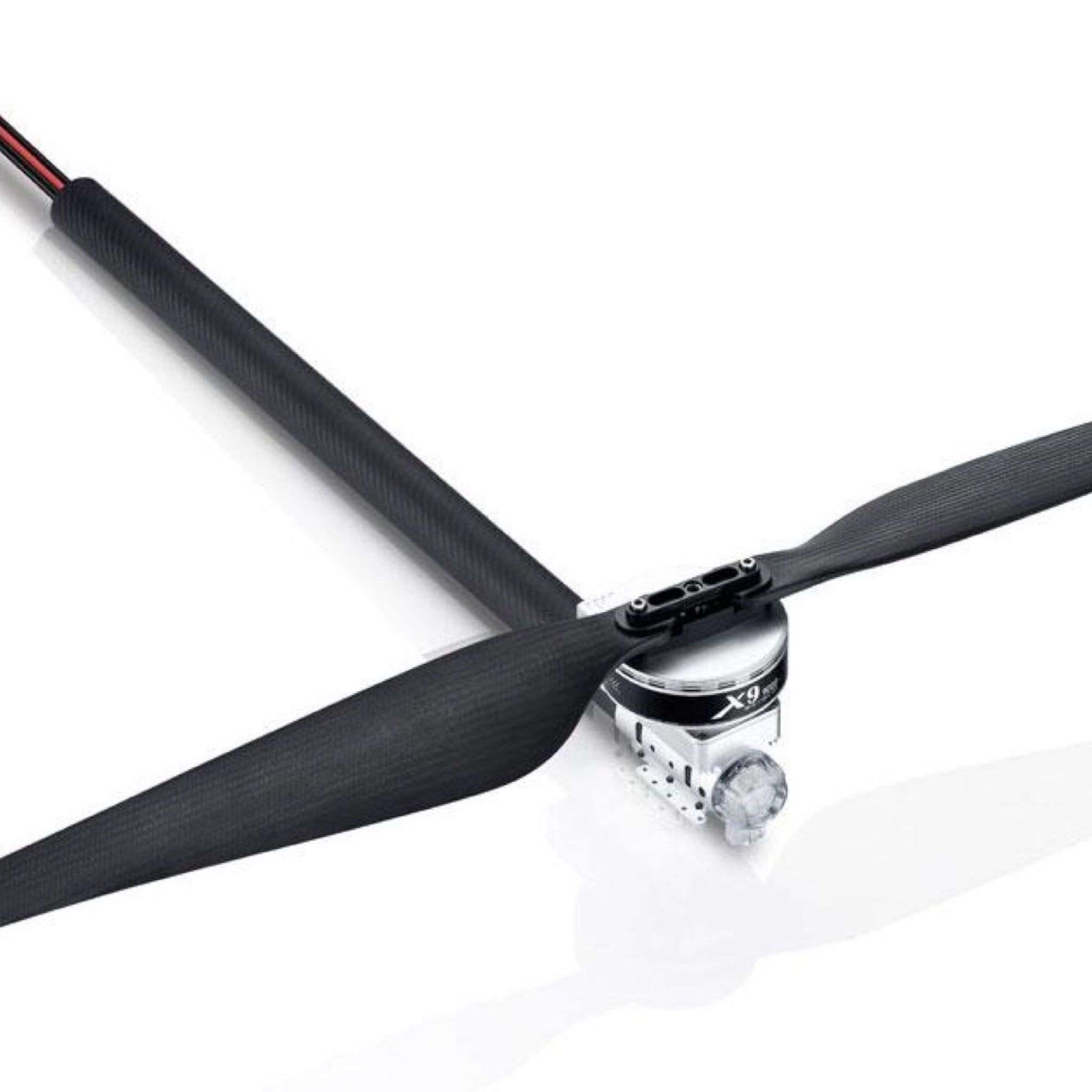

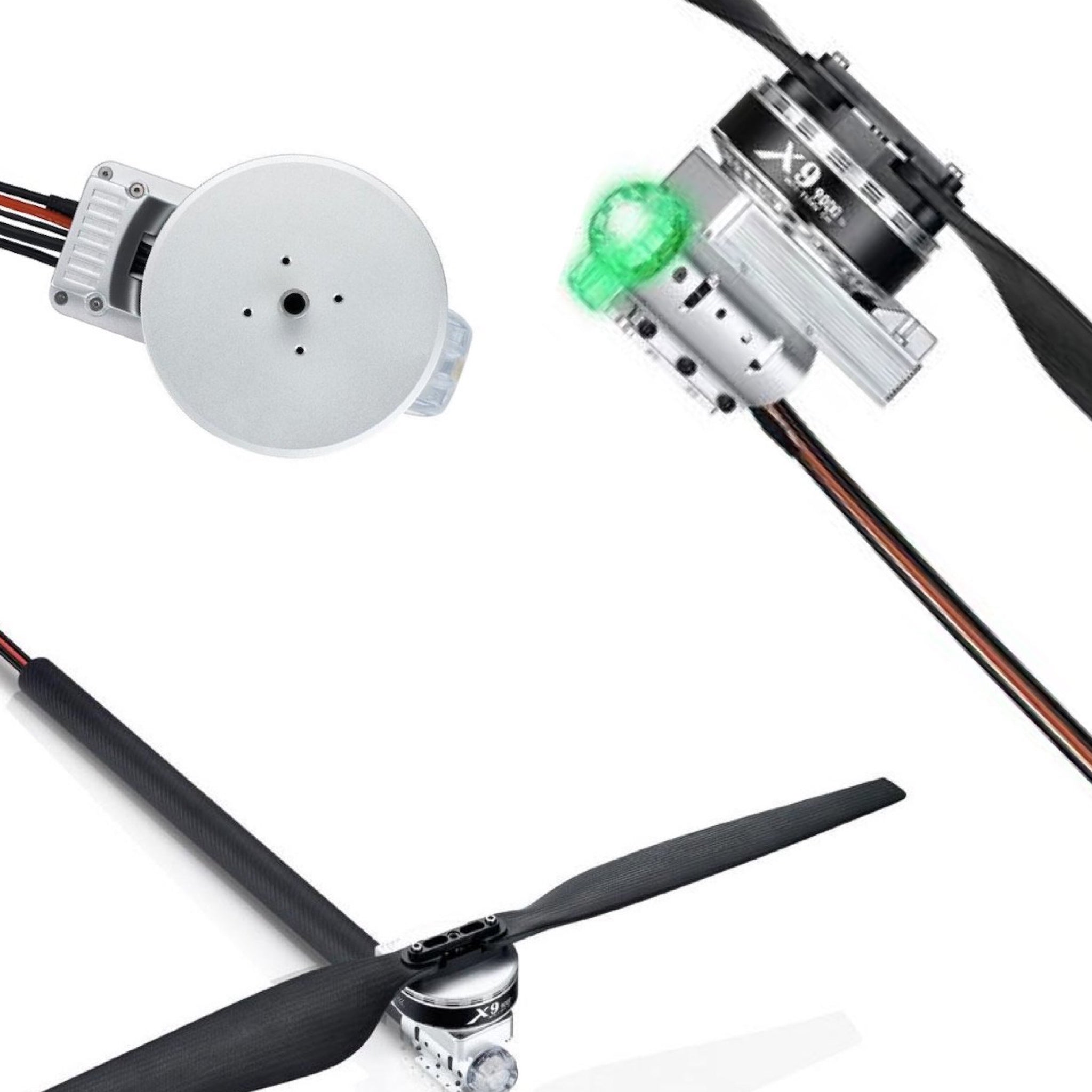

The COMBO-XRotor Pro-X9 brushless power system is a plant protection power system that adapts to uniaxial 7-9.5kg load. The maximum pulling force of uniaxial is 19.2kg, integrated with a 40mm carbon fiber tube arm. The waterproof grade is IPX7. It is resistant to rainwater, pesticides, salt spray, high temperature, sand and dust, impact, mud, and soil. ESC FOC-motor PMS system has optimized computing, with multiple protection functions such as power-on self-check, power-on voltage abnormal protection, overcurrent protection, lock-up protection and etc. as well as real-time data transmission.
|
Model
|

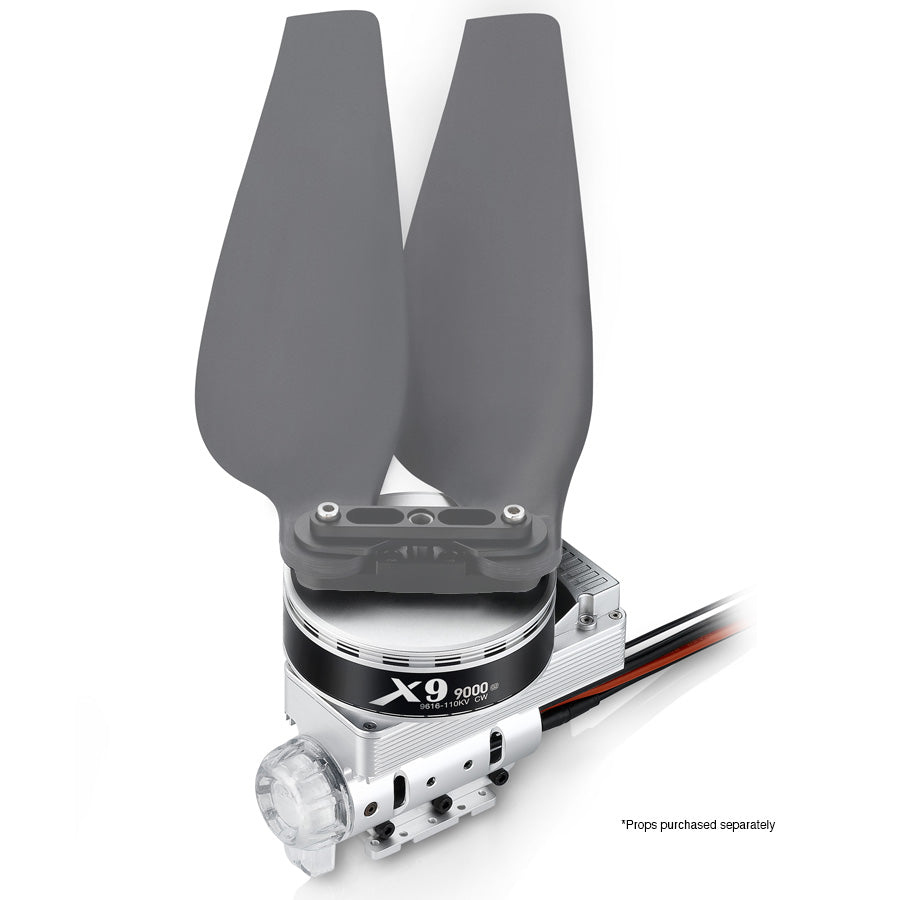

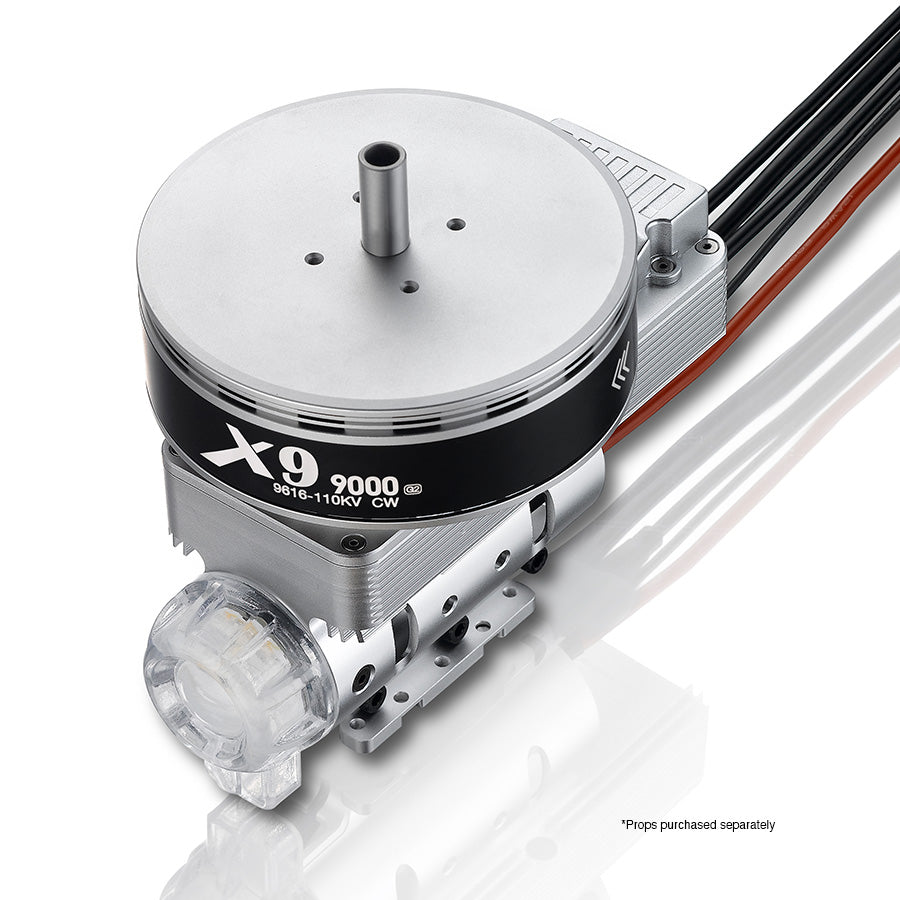

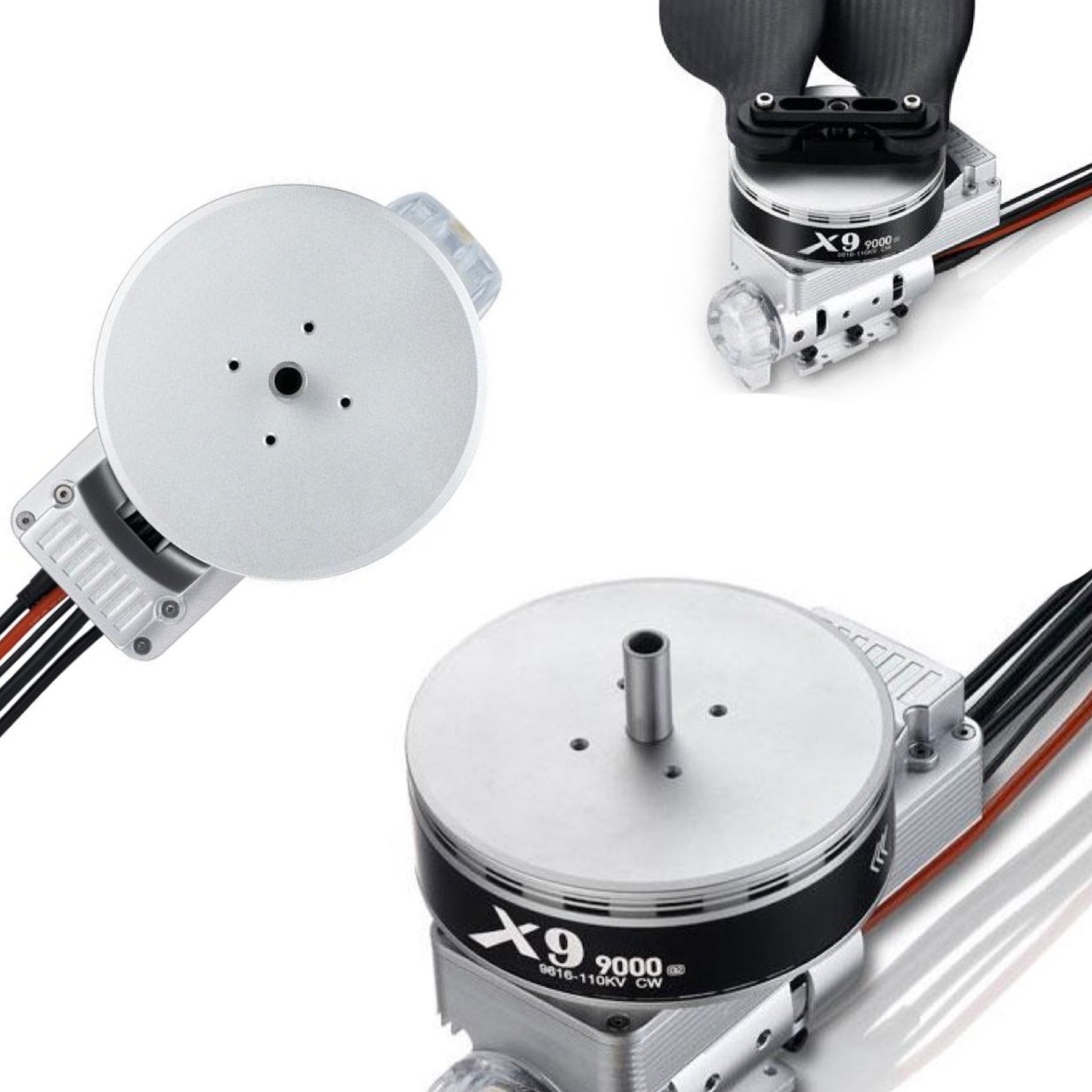

X9 CM9616 110KV D40 - UART (Prop is not included)
|
|
 |
|
p/n
|
38040311 (30410030023) / 38040312 (30410030024)
|
| Max Thrust |
19.2kg/Axis (46V, Sea Level ) |
| Recommended LiPo Battery |
12S LiPo |
| Recommended Takeoff Weight |
7-9.5kg/Axis (46V, Sea Level ) |
| Product Weight (ESC/Motor/Prop) |
1400g |
|
Waterproof Rating
|
IPX7 |
| Operating Temperature |
-20-55℃ |
| Motor |
|
| Stator size |
96*16mm |
| KV Rating |
110KV |
| O.D of Carbon Fiber Tube |
φ40 |
| Bearing |
Imported Waterproof Bearing |
| ESC |
|
| Recommended LiPo Battery |
6-12S LiPo |
| PWM Input Signal Level |
3.3V/5V (Compatible ) |
| Throttle Signal Frequency |
50-500Hz |
| Operating Pulse Width |
1100-1940 μs (Fixed or cannot be Programmed ) |
| Max. Input Voltage |
52.2V |
| Max. Input Current (Cont.) |
120 A (w/ Good Heat Dissipation ) |
| Max. Peak Current (10s) |
150 A (w/ Good Heat Dissipation ) |
| BEC |
No |
| Nozzle Mounting Holes |
φ40mm |
| Recommended Propeller |
|
| Diameter×Pitch |
34.7×11 inch |
| Weight |
- |
|
UART or CAN version available, B2B bulk pricing available |
|
 |
IMPORTANT NOTE;
- X9 series is designed for Agricultural application or logistics transportation. farmland. Agricultural UAV features high thrust, heavy loaded, good anticorrosive and antirust performance. Due to heavy motor/ESC, its thrust effect is lower compared to aerial photography UAV. It focuses on the durability and long term reliability. In contrast, Aerial photography UAV features a high thrust effect. It requests highly on reliability and stability than plant protection UAV. Due to lightweight motor / ESC, it is not recommended to use it in a severe / harsh environment.
- Made to order available
Limited Warranty notes
- Brushless power systems can be very dangerous. Any improper use may cause personal injury and damage to the product and related devices. We strongly recommend reading through this user manual before use. Because we have no control over the use, installation, or maintenance of this product, HOBBYWING does not accept any claims against the Xrotor X-series product. No liability may be assumed for any damage or losses resulting from the use of the product. For all damaged product cases, HOBBYWING will perform a damage assessment/inspection service. If the damage was caused by manufacturing defective parts, HOBBYWING is only responsible for the product cost and nothing else as a result of using HOBBYWING branded products. Props and connectors are considered "Accessory parts". There is no warranty on accessory parts.
- HOBBYWING products purchased from Hong Kong / Chinese retailers deem products non-warranty in North America
- Discount /auction stores such as eBay, etc are considered "non-authorized stores" in North America. Products deem non-warranty
