Introducing PLATINUM V5.0 series

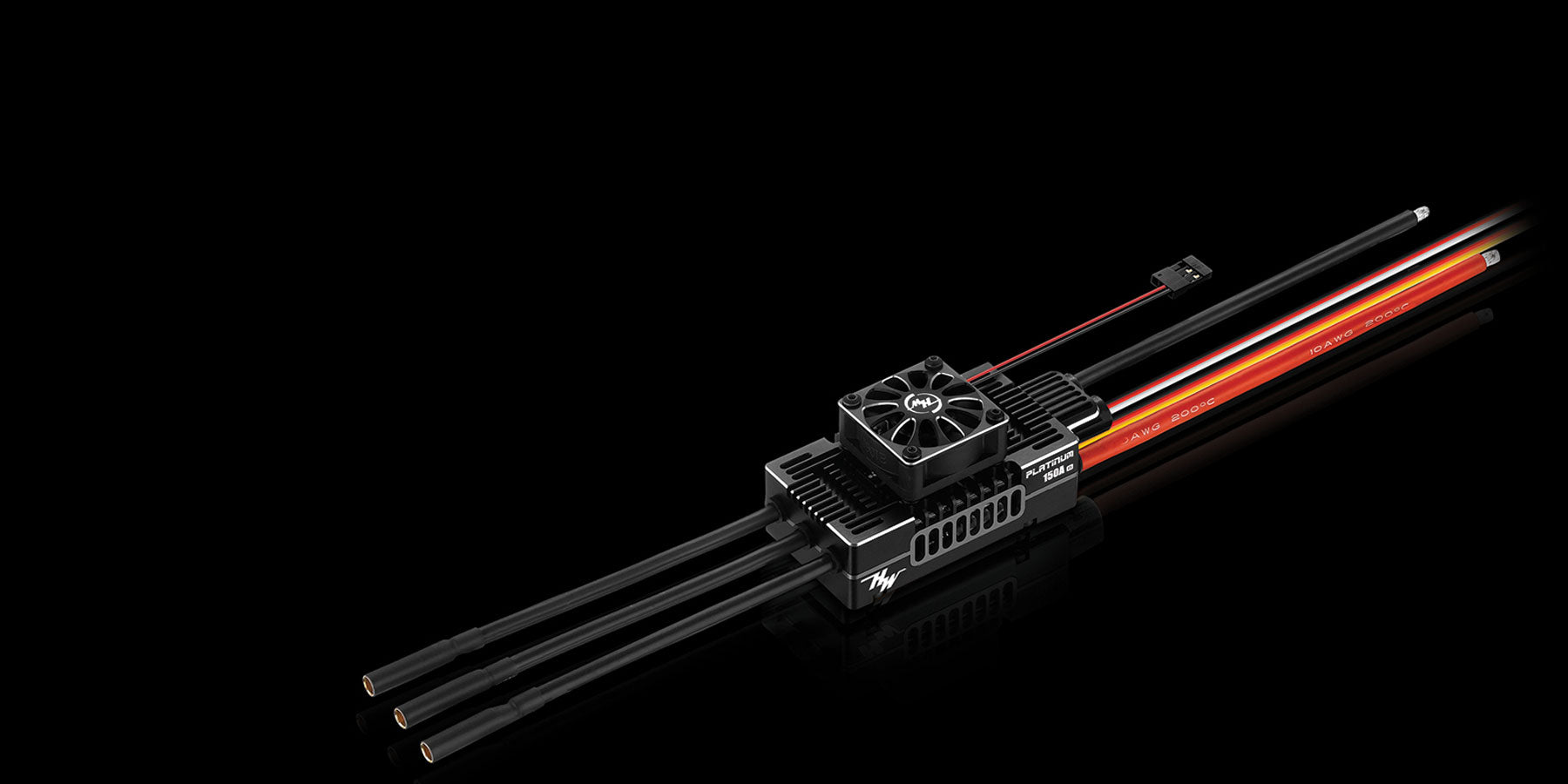

Double-sided cooling Structure Double-sided cooling Structure

The double-sided structure of the circuit board has been re-designed to improve heat dissipation. The “open” design has allowed for better internal airflow circulation, resulting in a better cooling effect. Using thermal conductive tape and an additional heat-sink would prolong the life and improves heat dissipation on the external capacitors. The thermal scale duct design has enhanced the cooling effect for the ESC to work cooler and more stable in the most extreme of conditions.

Stronger flow resistance ever before

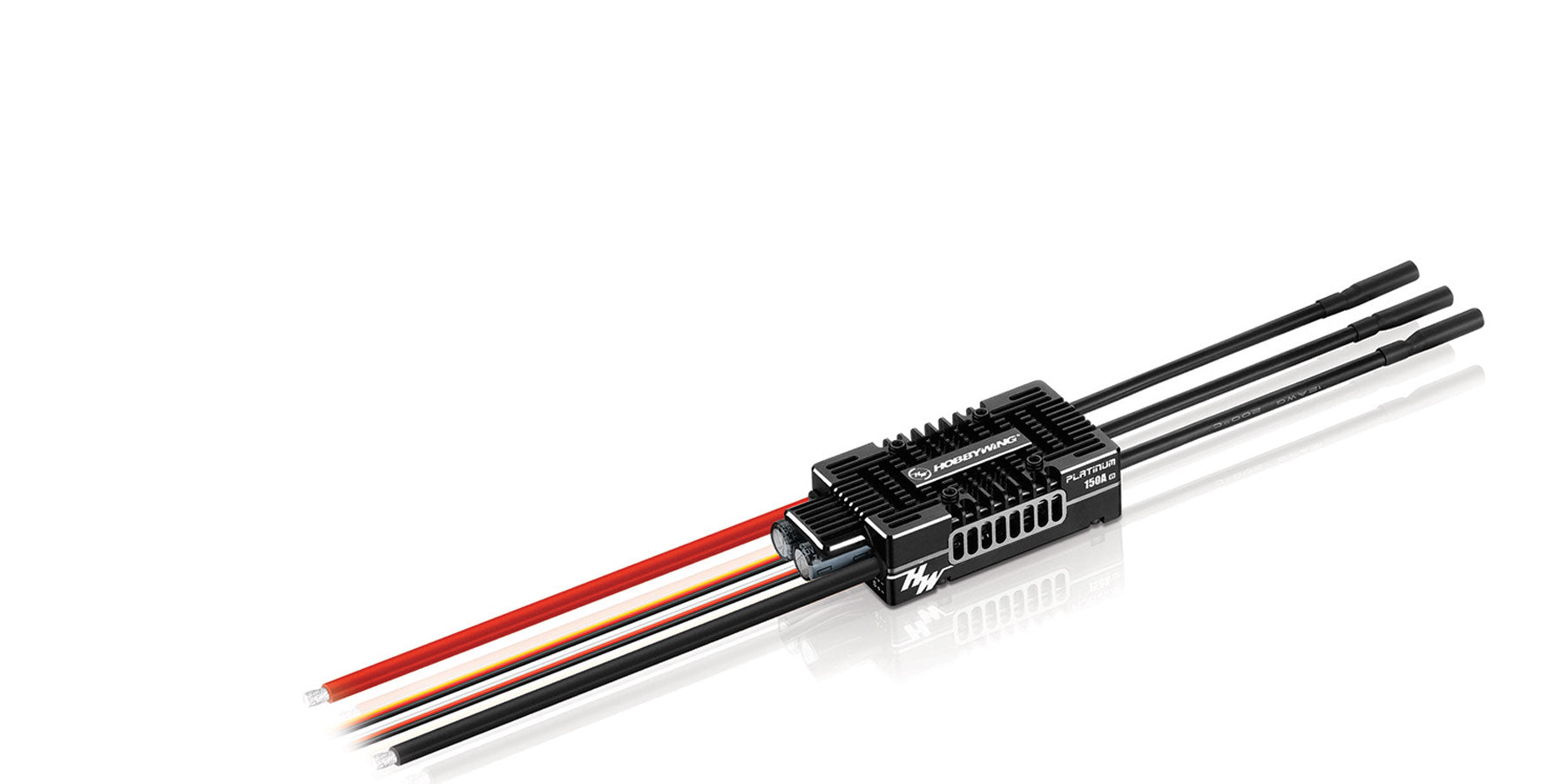

Smaller size，Stronger flow resistance Smaller size，Stronger flow resistance

The breakthrough new re-designed circuity has a more robust thermal structure in order for the Platinum V5 to achieve a stronger flow resistance. The smaller footprint design further improves assembly process, resulting in the ESC from touching the head cover (canop).

More flexibility and control

Superior fixed speed capabilities Superior fixed speed capabilities

The 32-bit processor combines with advanced algorithms from
the Hobbywing engineers are key to maximizing the full potential of the ESC. The fixed speed sensitivity is now fully adjustable. This allows users to quickly find the suitable settings to suit their flying style, performing advanced aerobatic maneuvers and 3D flying at ease with precision.

20% increased & Stronger BEC

UBER POWER BEC UBER POWER BEC

The high power BEC is built-in and fully programmable. For example of Platinum 150A V5 ESC, the output voltage is adjustable between 5.4-8.4V (0.1v step) and has a continuous output current of more than 10A. The instant output current has been increased to 30A and will provide an abundance of power consistently throughout the entire flight.

HEX-METRIC ARCHITECTURE

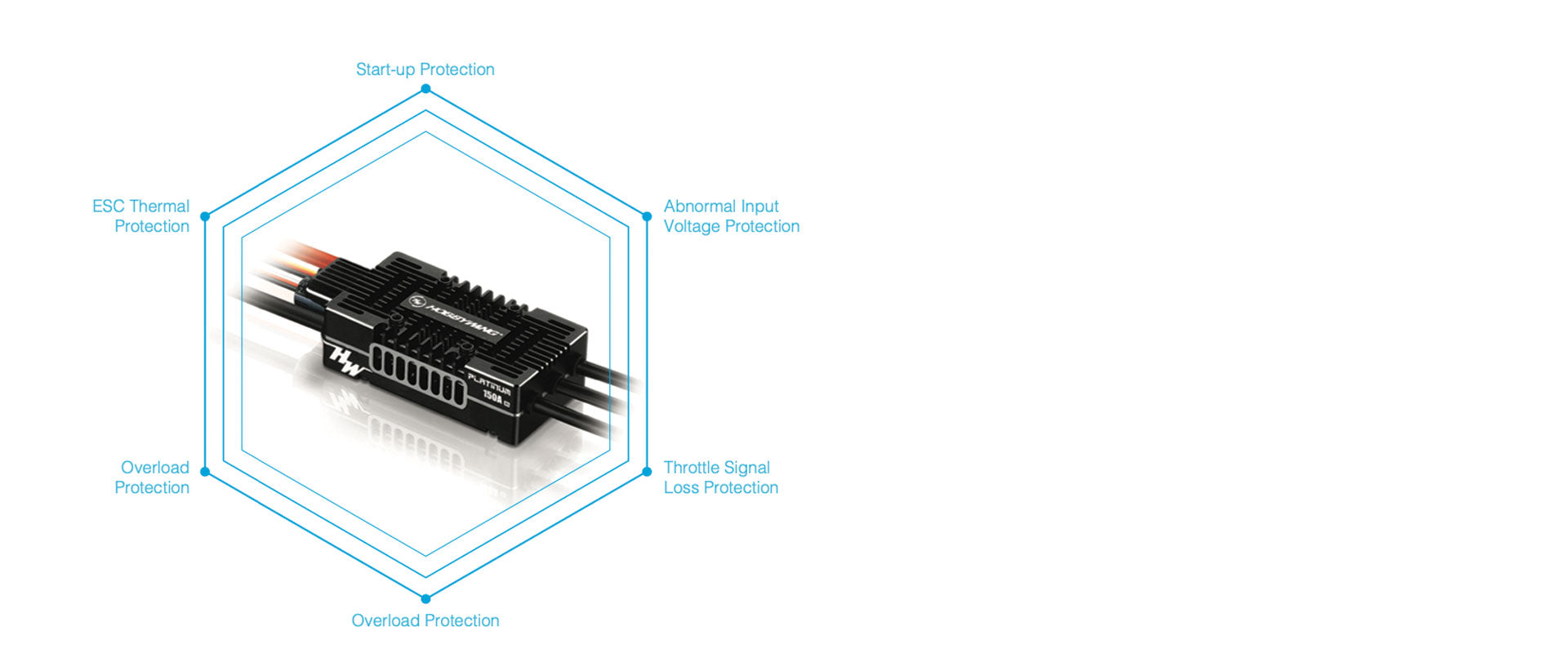

PROTECT YOUR INVESTMENT PROTECT YOUR INVESTMENT

Your investment is protected by HOBBYWING 6 stage-multi-protection functionality :

1. Start-up protection

2. Current protection

3. Temperature protection

4. Overload protection

5. Throttle signal loss protection

6. Input voltage protection

Your investment is protected by HOBBYWING 6 stage-multi-protection functionality :

1. Start-up protection

2. Current protection

3. Temperature protection

4. Overload protection

5. Throttle signal loss protection

6. Input voltage protection

DEO TECHNOLOGY

Synchronous rectifier technology with multiple advantages Synchronous rectifier technology with multiple advantages

The ESC features optimized synchronous rectifier drives up
efficiency (DEO-Driving Efficiency Optimization, or Active Freewheeling), with multiple benefits

PACKED WITH FEATURES PACKED WITH FEATURES

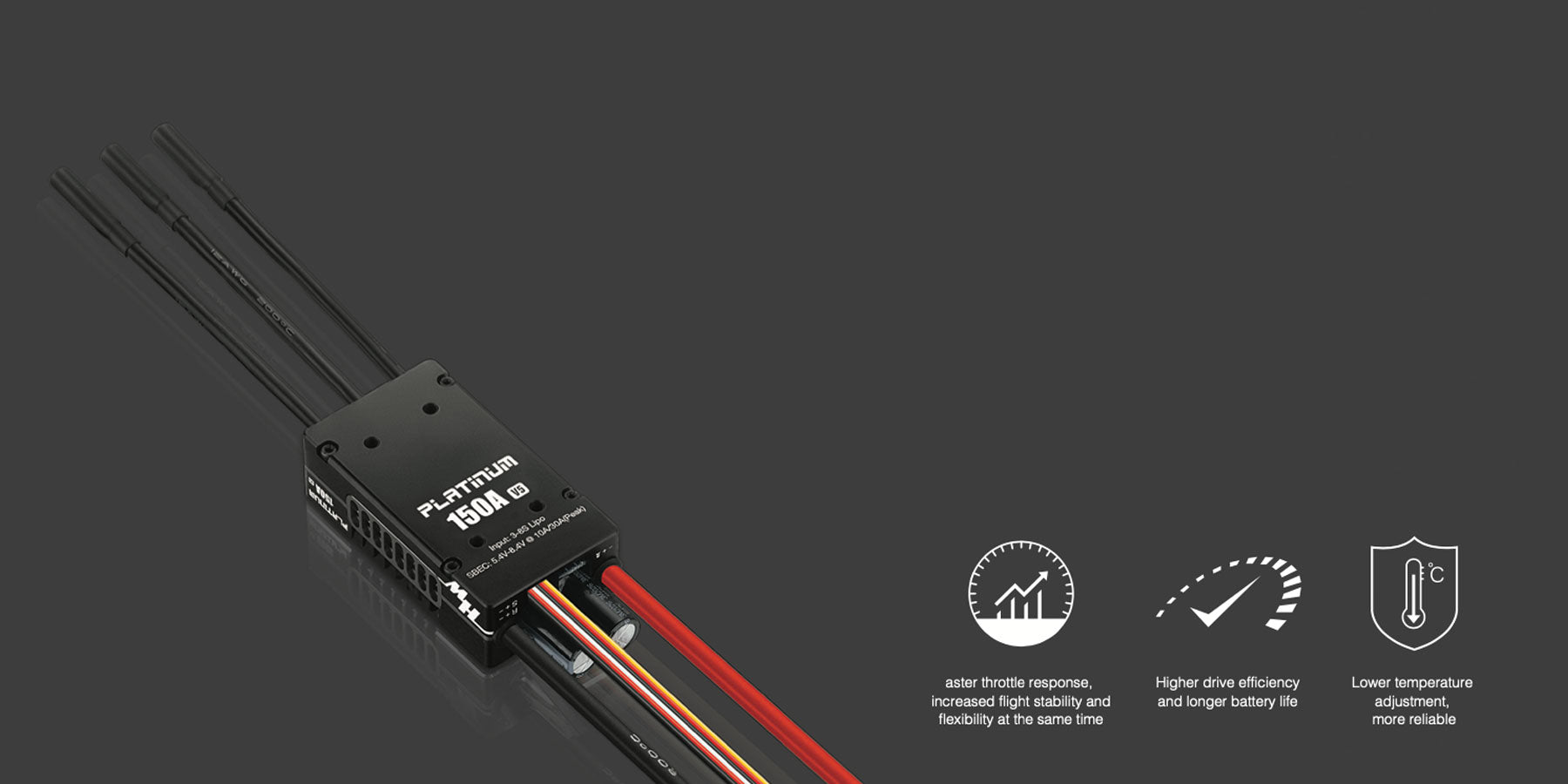

Comes with a stand-alone parameter setting interface that expands a wide range of functions: Faster throttle response, increased flight stability and
flexibility at the same time, Higher drive efficiency and longer battery life, Lower temperature adjustment, more reliable

Additional Braking technologies

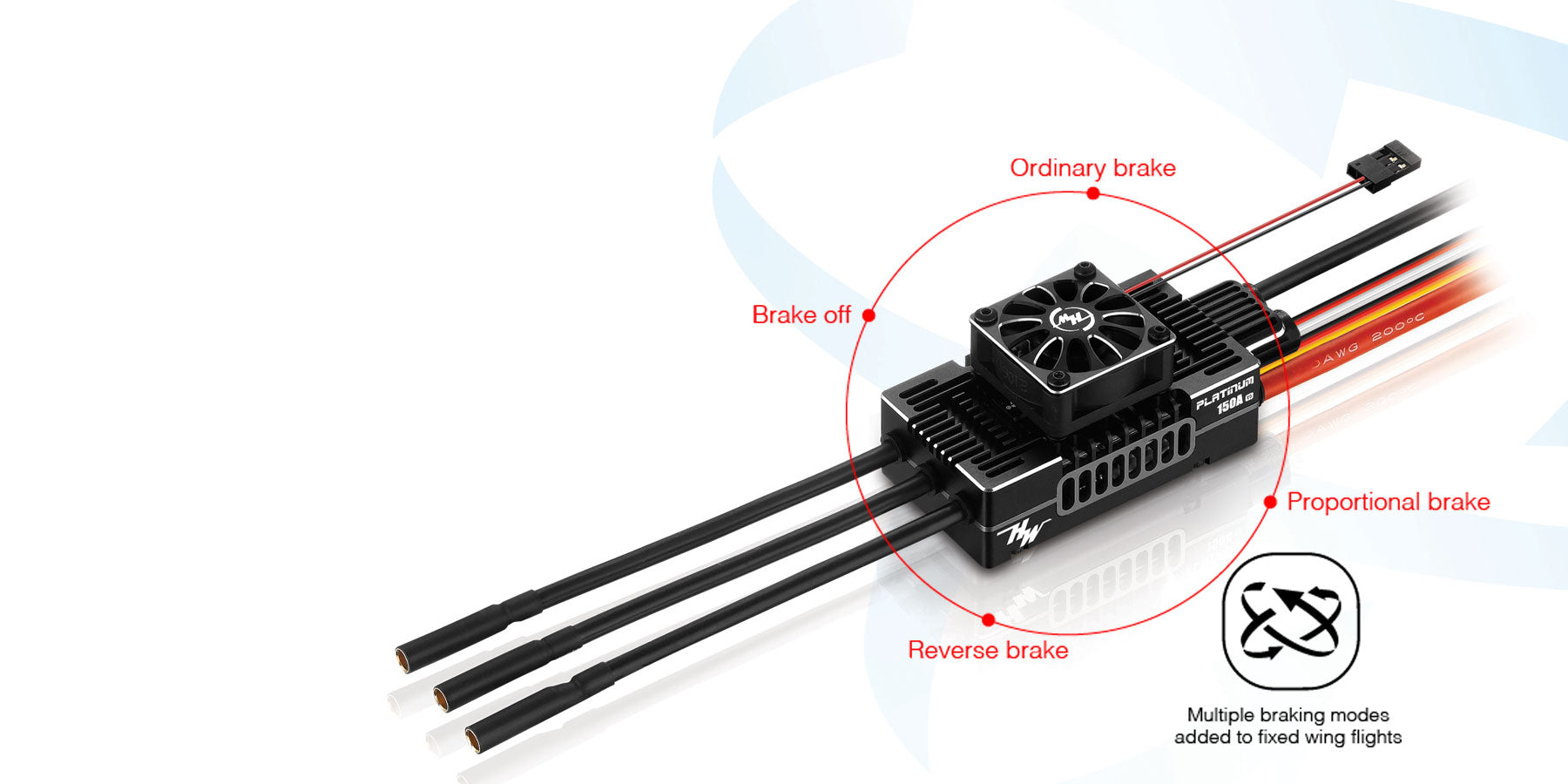

Multiple braking modes for fixed wing flights Multiple braking modes for fixed wing flights

Brake off, Ordinary brake, Proportional brake and Reverse brake.
- In the brake mode, the brake strength can be adjusted.

- In the proportional brake mode, brake strength is automatically assigned though the throttle rocker position.

- In reverse brake, the remote control system is able to achieve and control forward and reverse.

INTRODUCING

Platinum V5 TECHNOLOGY

Specifications

Telemetry Function: Mikado VBar；Futaba S.Bus2；MSH iKon；Brain and etc.

Model	260A HV	180A HV
p/n	SBEC: 30203100 OPTO:30203101	30209103
Application	700-800 class helicopter (main rotor length 690-880mm),or fixed-wing)	550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
Input (V) Lipo	6-14S	6-14S
Cont./Peak Current (10s)	260A / 400A	180A/260A
BEC (Switch mode)	SBEC: 5-12V/10A (Step: 0.1V) OPTO: none	5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak

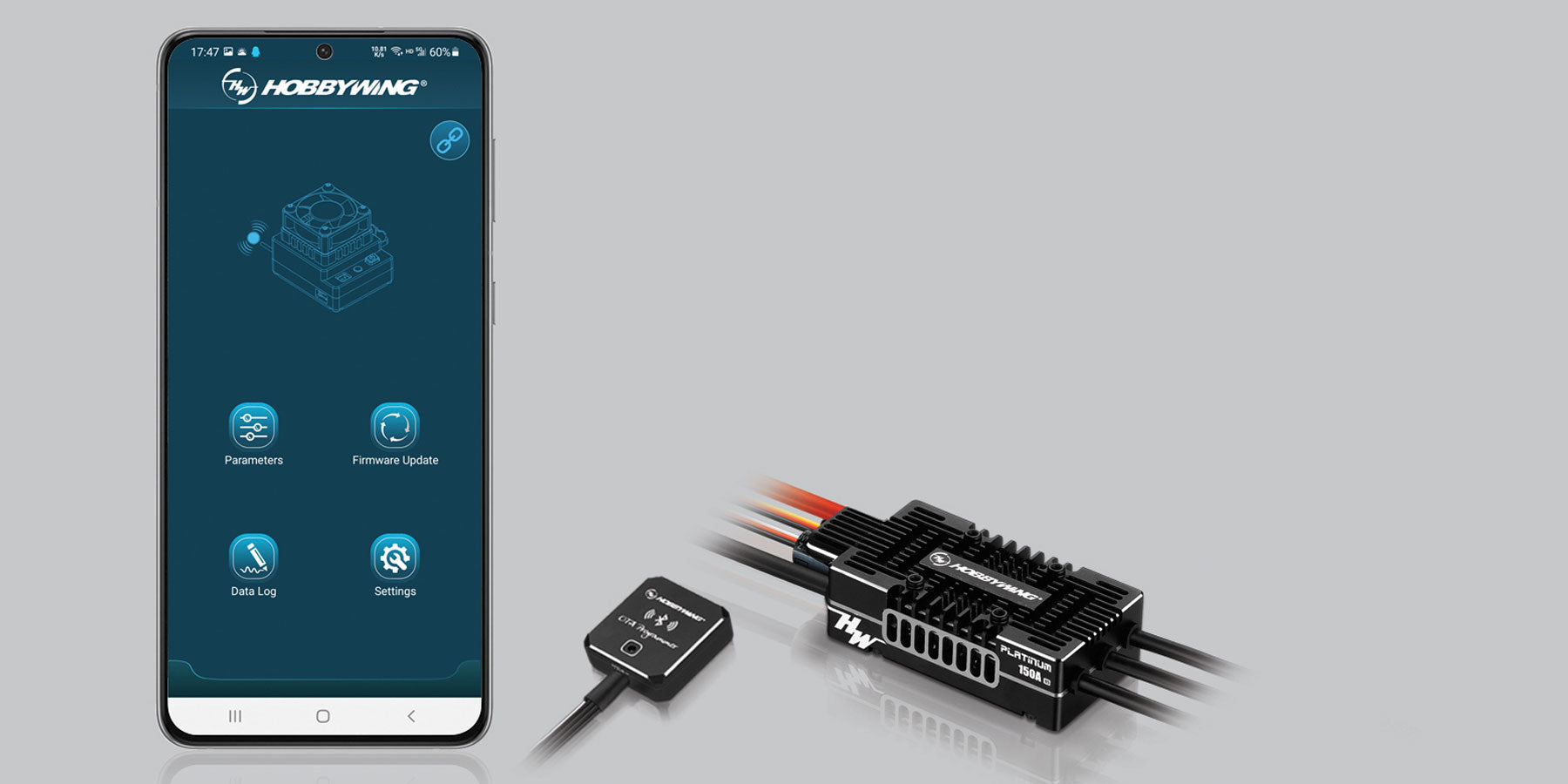

Separate Programming Port	Tunalyzer / LCD Program Box / OTA Programmer	Tunalyzer / LCD Program Box / OTA Programmer
Input wires	Red-8AWG-150mm Black-8AWG-150mm	Red-10AWG-150mm Black-10AWG-150mm
Output wires	Black-10AWG-100mm	Black-10AWG-100mm
Output connector	n/a	Gold connector
Mounting-holes	M3-3mm, 39 x 98mm	M3, 16.5* 90x34mm
size	89 x 50 x 34mm	100.6 x 45.5 x 26.1 mm
Weight	SBEC: 297g (w/wires) OPTO: 287g (w/wires)	250.6g (Without Fan)

Platinum 260A V5 ESC - HV Series (6-14S) from $439.99 USD $622.00 USD

Platinum 180A V5 ESC - HV Series (6-14S) Sold Out
