IMPORTANT: To ensure your safety in the North American region, please proceed with your order first. Afterward, submit the Product Release Form.Your order will not be shipped without the completed release form.
If the ESC comes with CAN functions, CAN digital throttle may need to be adapted and configured specifically by the flight controller and the Hobbywing CAN protocol. In this case, you need to obtain the agreement from HOBBYWING, flight control manufacturer and/or any other agencies necessary.
Recommended Takeoff Weight: 20-22kg/axis
Total Weight: 2800g
Recommended LiPo Battery: 18S(LiPo)
Propeller: 48175
Tube Diameter: 50mm
Recommended craft: For drones w/ a water load capacity of less than 40 liters

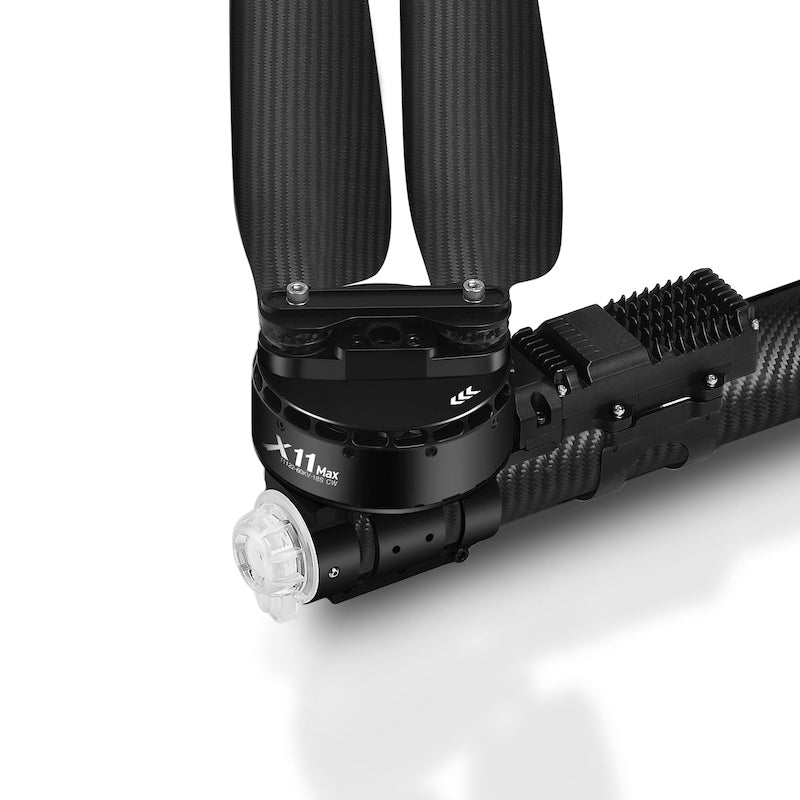

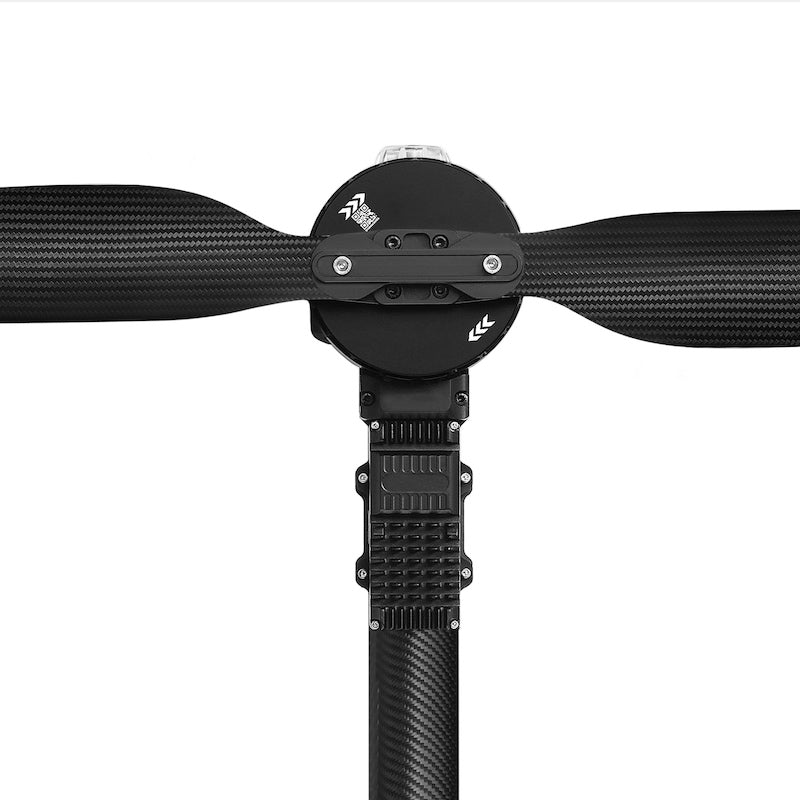

The HOBBYWING XRotor X11-MAX brushless power system is designed for plant protection and is capable of handling a single-rotor load between 20 and 22 kg per rotor. Each rotor provides a maximum thrust of 44 kg and is suitable for use with 50mm carbon fiber tube arms. This system boasts an IPX6 waterproof rating, making it resistant to rain, pesticides, salt spray, high temperatures, sand and dust, impact, and mud.
The ESC (Electronic Speed Controller) utilizes FOC vector control, based on the PMSM system algorithm optimization. It features both digital and analog throttle options for enhanced flight stability. The system includes power-on automatic detection, protection against power-on voltage abnormalities, over-current protection, stall protection, and other safety functions. CAN communication utilizes a real-time data transmission and includes a built-in fault storage function for recording fault data.
