IMPORTANT: To ensure your safety in the North American region, please proceed with your order first. Afterward, submit the Product Release Form.Your order will not be shipped without the completed release form.
If the ESC comes with CAN functions, CAN digital throttle may need to be adapted and configured specifically by the flight controller and the Hobbywing CAN protocol. In this case, you need to obtain the agreement from HOBBYWING, flight control manufacturer and/or any other agencies necessary.
*Props sold separately
Recommended uniaxial load: 2.5-3.5kg
Lithium compatible: 12-14S (Max 63V)
Applicable carbon tube: 30mm (diameter)
Protection level: IP45
Max.Torque: 7.5kg
Ambient temperature: -30°C-65°C
Total weight (excluding propellers): 458g
Support throttle frequency: 50-500Hz
Recommended Prop Dimension: 30 x 9.8 inch | Weight (straight Propeller): 71g

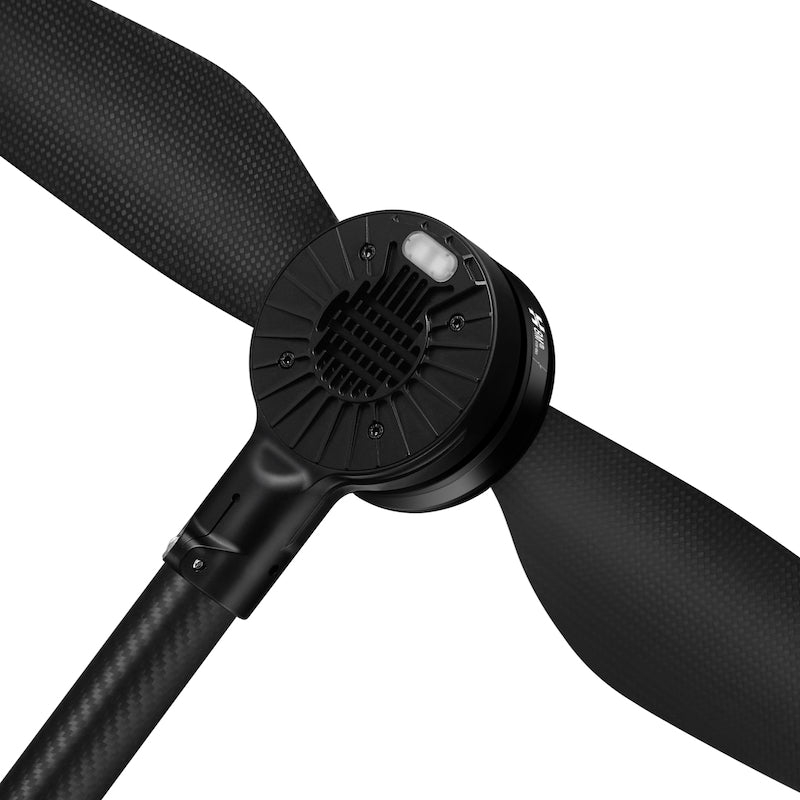

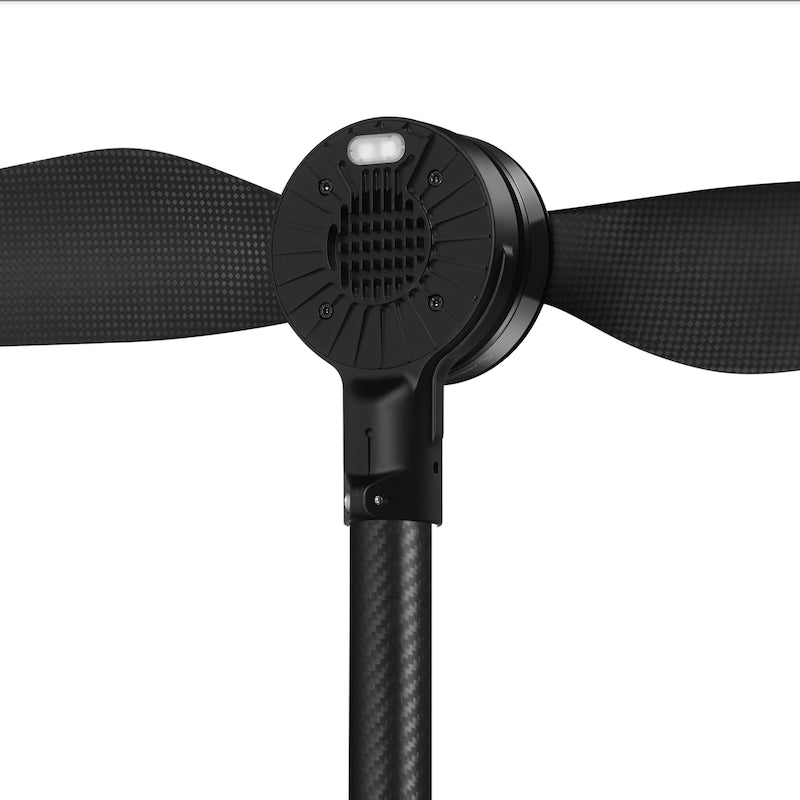

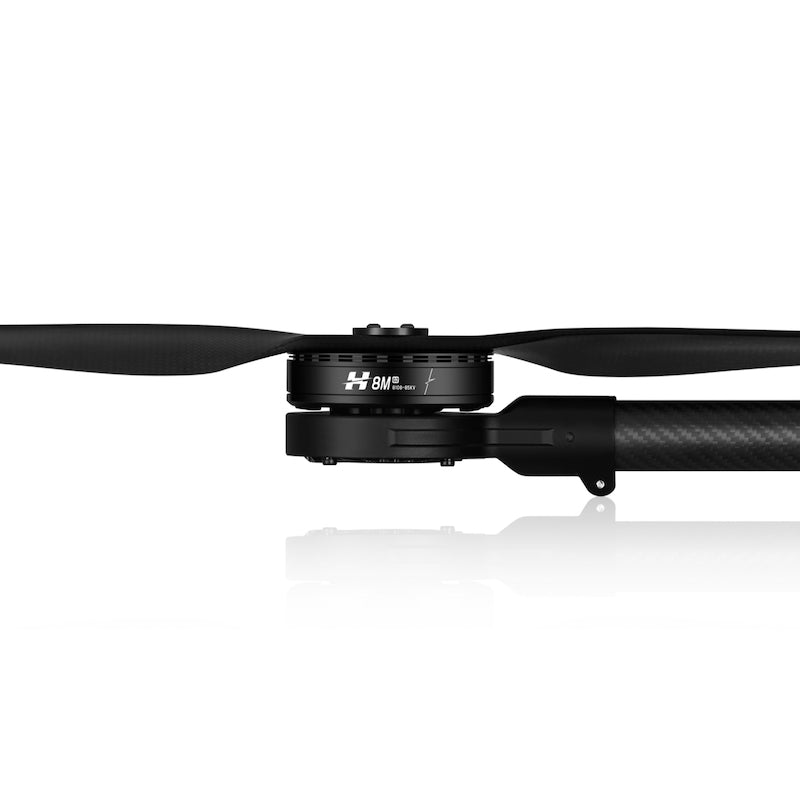

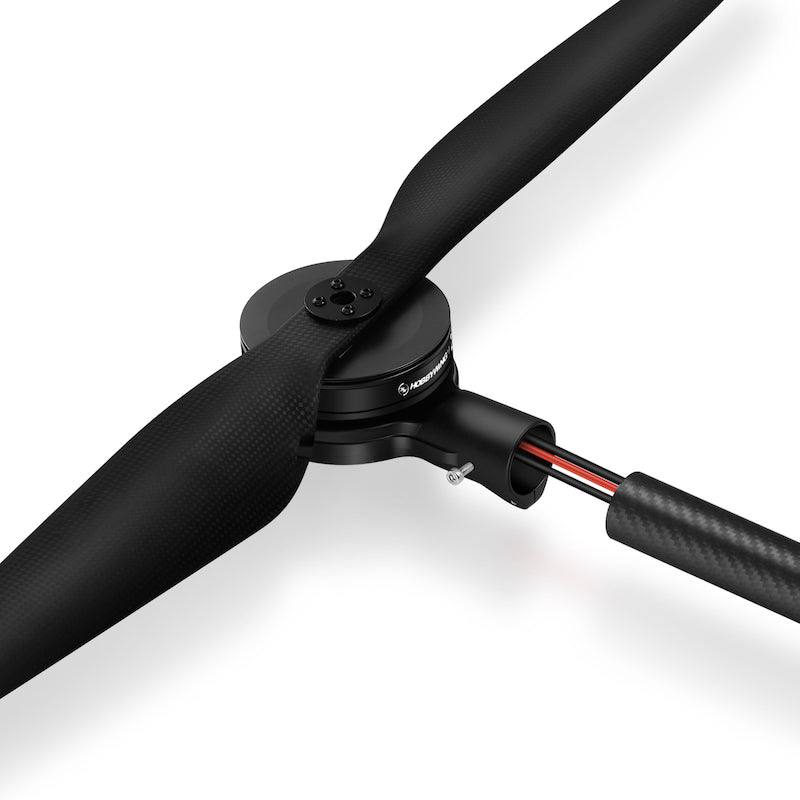

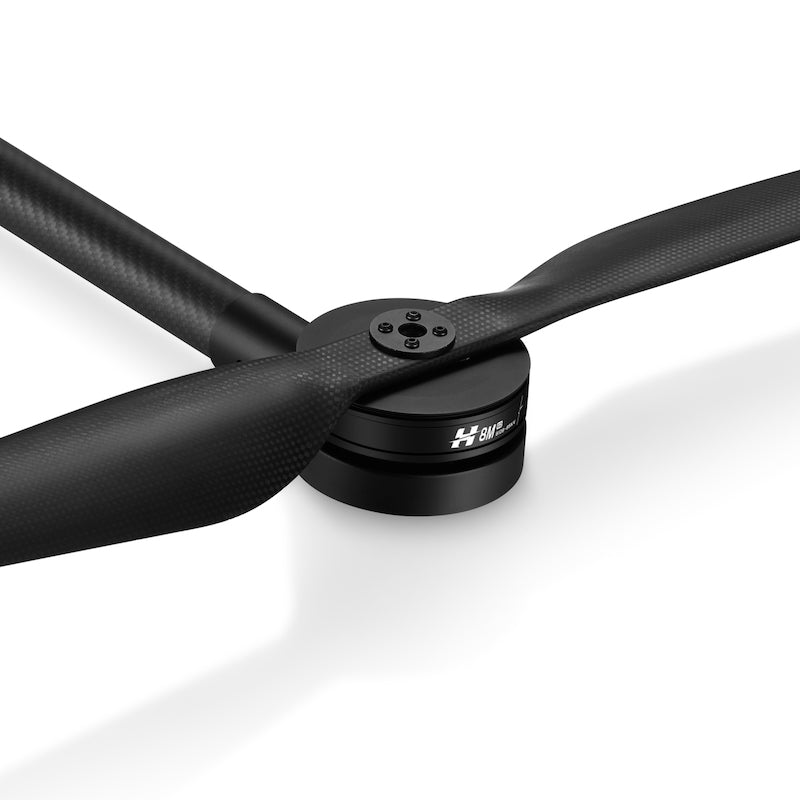

The HOBBYWING H8M 8108 85KV brushless power system is an industrial-grade solution designed for single-axis loads ranging from 2.5 to 3.5 kg, with a maximum pulling force of 7.4 kg. It is compatible with 30mm carbon fiber tube arms and boasts an IP45 waterproof protection rating. Offering efficient heat dissipation, it serves as a versatile power solution for various applications, including small professional aerial photography, police operations, security, surveying and mapping, emergencies, and more.
The FOC ESC (Electronic Speed Controller) features CAN communication, a dual redundant design for digital and PWM throttle options, power-on self-test, fault storage, over-current protection, stall protection, and other protective functions.
